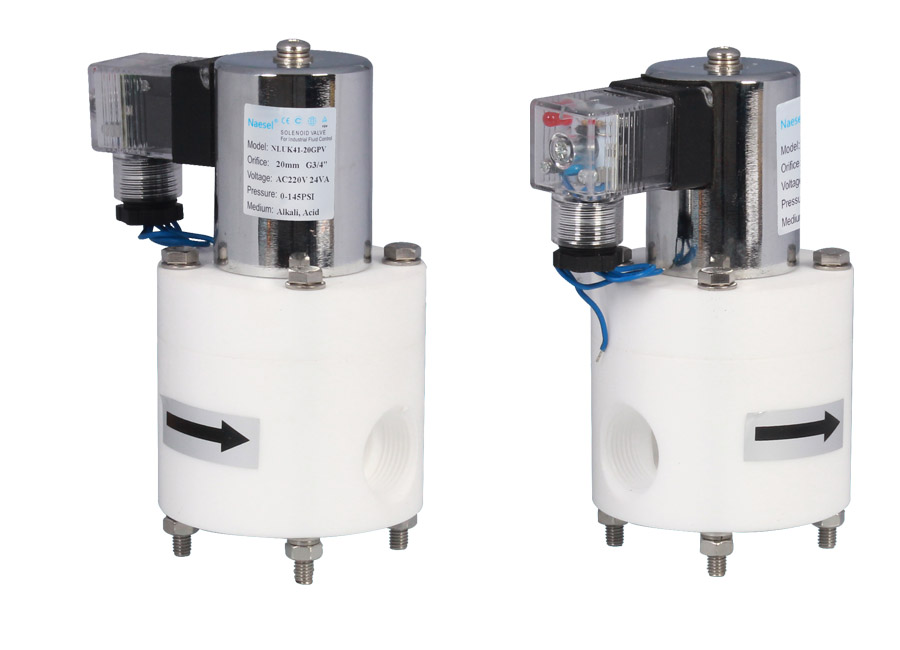

Chemical Solenoid Valve Teflon body G 1 / 2 to 2 Inch for Weak Acid Weak Alkali Fluid
Chemical Solenoid Valve Teflon body G 1 / 2 to 2 Inch for Weak Acid Weak Alkali Fluid
1. How To Order
Model Orifice Port Thread Body Seal Coil Voltage
NLUK41 15, 20, 25, 1/2" , 3/4", G- G P-PTFE E-EPDM YC1B 1-AC220V 2.DC24V
32, 40, 50 1", 1-1/4", R- BSPT V-FRM/Viton YE1B
1-1/2", 2" YF1B
NLUK41 Chemical Solenoid Valve Teflon body G 1 / 2 to 2 Inch for Weak Acid Weak Alkali Fluid
Example : NLUK4115 GPV YC1B1: NLUK41 Series, normal closed, 15mm orifice, G1/2", PTFE body, FKM seals, coil YC1B, AC220V.
2. Solenoid Valve Specification
Medium: Air, water, steam, oil, etc. Temperature: EPDM seal:-30℃~120℃(-22℉~248℉)
Orifice: 15, 20, 25, 32, 40,50(mm) Viton seal:-30℃~150℃(-22℉~302℉)
Pressure: NLUK41:0.01MPA~0.6MPA (2PSI~87PSI) Port size: 1/2”, 3/4”, 1", 1-1/4", 1-1/2”, 2”
Tolerance: ±10% Port thread: BSPT, G Thread
Voltage: AC220V DC24V Coils: YC1B, YE1B, YF1B
Material: Body- PTFE Character: 1.Isolation Piston structure, longer life time,
Seal- VITION, EPDM, PTFE new PTFE seals, ambient is completely isolated
Armature- SS304 from metal parts
Plunger- SS430F 2. used in Alkali, Acid, Salts etc.
Stop- SS430F
Spring- SS304
3. Detailed Information
Chemical Solenoid Valve Teflon body G 1 / 2 to 2 Inch for Weak Acid Weak Alkali Fluid
| Model | Port | Orifice | CV | Min. Pressure | Max. Pressure | Body Material | Seal Material |
| NLUK4115XXX | 1/2" | 15 | 4 | 0.01Mpa | 0.6Mpa | PTFE | PTFE EPDM Viton (FKM) |
| NLUK4120XXX | 3/4" | 20 | 5.5 | 0.01Mpa | 0.6Mpa |
| NLUk4125XXX | 1" | 25 | 13 | 0.01Mpa | 0.6Mpa |
| NLUK4132XXX | 1-1/4" | 32 | 17 | 0.01Mpa | 0.6Mpa |
| NLUK4140XXX | 1-1/2" | 40 | 25 | 0.01Mpa | 0.6Mpa |
| NLUK4150XXX | 2" | 50 | 40 | 0.01Mpa | 0.6Mpa |
4. Diemsion
5. Packing Detail
Plastic Sealed packing to prevent metal being oxidized.
6. More Product Photo and Certifications
7. Why US?
Our core advantages to pursue Your Success.
1.Reliable Quality (We are OEM supplier of ASCO and Parker)
2.Over 20 years solenoid valve design and customize experience.
3.Mark Service(both Product and packing wiht your design and logo)
4.Related Supply Service, including Festo, SMC, , Airtac, Shako.
5.Good English communication
6.Opening Mind to growing with clients for different products.
(please continue reading to find out more detail)
