General 2 / 2 Way Pilot Operated Diaphragm Valve , 2W Solenoid Pressure Control Valve

WENZHOU NAISAILE SOLENOID VALVE CO.,LTD
Contact Now

General 2 / 2 Way Pilot Operated Diaphragm Valve , 2W Solenoid Pressure Control Valve

Brand Name : NAESEL

Model Number : 2W21-15

Certification : CE ROHS UL

Place of Origin : China

MOQ : 5PCS

Price : Negotiation

Payment Terms : T/T, Western Union, L/C, Paypal, D/A, D/P

Supply Ability : 10000PCS Per Month

Delivery Time : 2-7 days

Packaging Details : solid paper carton on pallet

Started : 0 bar

Medium : Air, city gas, water, oil, petroleum

Structure : Diaphragm

Port thread : BSPP, BSPT, NPT, G or flange type

Seal : NBR EPDM FKM

Working Pressure : 0~1.0Mpa (0-145psi)

Port size : 3/8", 1/2", 3/4", 1", 1-1/4", 1-1/2", 2"

Orifice : 12, 15, 20, 25, 32, 40, 50(mm)

Material : Brass, SS304

Contact Now

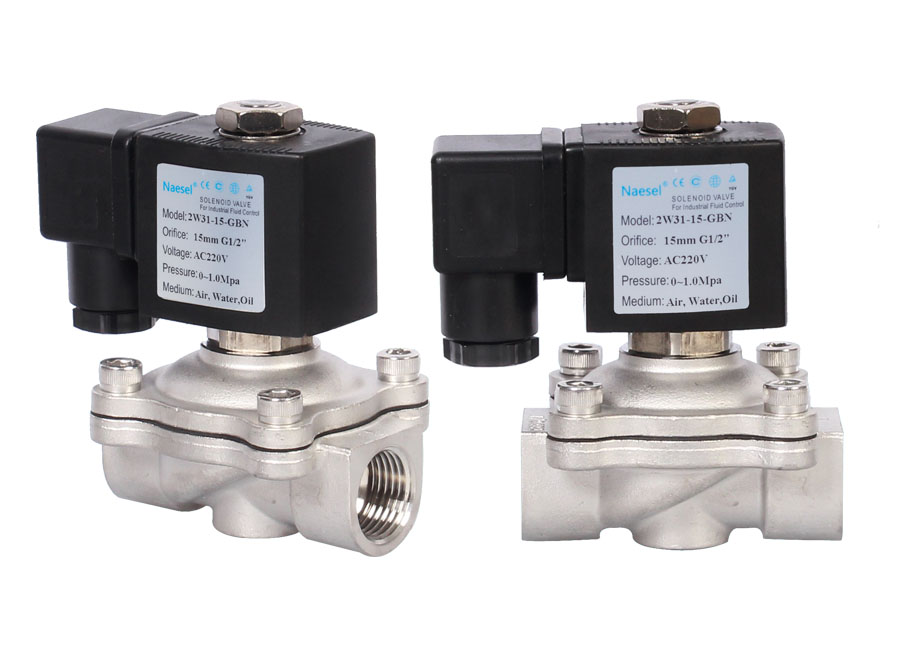

2W21 general 2/2 way DN15 G1/2" diaphragm solenoid valve 2W solenoid valve

general 2/2 way DN15 G1/2" diaphragm solenoid valve 2W solenoid valve

General 2 / 2 Way Pilot Operated Diaphragm Valve , 2W Solenoid Pressure Control Valve

1. How To Order


 Model     Orifice    Thread       Body           Seal             Coil            Voltage

   2W11     12, 15, 20,          G- G            B-Brass               N-NBR             S91B          1-AC220V   2.DC24V

   2W21     25, 32, 40,          N- NPT       S-SS304,SS316  E-EPDM           Y32B          3-AC110V   4.DC12V

   2W31      50                       R- BSPT                                  V-FRM/Viton   Y32B          5-AC24V     6-DC6V

   2W41                                                                                                                           7-DC36V

   2W12                                                                                                                  NASS0543

NLCU Series normally closed with S21B coil, DIN

Example : NLCU 25 GBN S21B1NLCU Series, normal open, 25mm orifice, G1", brass body, NBR seals, coil S21B, AC220V.


2. Solenoid Valve Specification

Medium:  Air, city gas, water, oil, petroleum                      Temperature: NBR seal:-10℃~80℃(14℉~176℉)

Orifice:    12, 15, 20, 25, 32,40,50,                                                    EPDM seal:-30℃~120℃(-22℉~248℉)

                                                                                               Viton seal:-30℃~150℃(-22℉~302℉)

Pressure: NLCULHN41:0.05~1.6MPA (7.5PSI~2320PSI)    Port thread:  NPT, G Thread

Voltage:    DC:6VDC,12VDC, 24VDC, 36VDC,                    Coils:            S51B,30VA(AC),25W(DC),IP65,100%ED

                 AC:24VAC, 110VAC, 120VAC, 220VAC, 240VACCharacter:    1. Compact design to save the space.

Tolerance: ±10%                                                                       2. Direct acting, 0 bar generated.

Material:    Body- Brass, stainless steel, Aluminum,

                 Seal- VITION, NBR, EPDM,

                Armature- SS304

                  Plunger- SS430F

                  Stop- SS430F

                  Spring- SS304

                  Shading Rings- Copper

                  Special Coils: Latching coil DC6~24V


3. Detailed Information

Model Port Orifice CV Min. Pressure Max. Pressure Body Material Seal Material Coil
AC(22VA) DC(17W)
2W2112XXX 3/8" 12 4.5 0.0Mpa 1.0Mpa 1.0Mpa



Brass

SS304

SS316

Nylon



NBR

EPDM

Viton

(FKM)

S51B
2W2115XXX 1/2" 15 4.5 0.0Mpa 1.0Mpa 1.0Mpa S51B
2W2120XXX 3/4" 20 9.3 0.0Mpa 1.0Mpa 1.0Mpa S51B
2W2125XXX 1" 25 12 0.0Mpa 1.0Mpa 1.0Mpa S51B
2W2132XXX 1-1/4" 32 24 0.0Mpa 1.0Mpa 1.0Mpa SD01B
2W2140XXX 1-1/2" 40 29 0.0Mpa 1.0Mpa 1.0Mpa SD01B
2W2150XXX 2" 50 48 0.0Mpa 1.0Mpa 1.0Mpa SD01B























4. Diemsion


General 2 / 2 Way Pilot Operated Diaphragm Valve , 2W Solenoid Pressure Control Valve




5. Packing Detail

Plastic Sealed packing to prevent metal being oxidized.

General 2 / 2 Way Pilot Operated Diaphragm Valve , 2W Solenoid Pressure Control Valve

General 2 / 2 Way Pilot Operated Diaphragm Valve , 2W Solenoid Pressure Control Valve




6. More Product Photo and Certifications

General 2 / 2 Way Pilot Operated Diaphragm Valve , 2W Solenoid Pressure Control Valve

General 2 / 2 Way Pilot Operated Diaphragm Valve , 2W Solenoid Pressure Control Valve


7. Why US?

Our core advantages to pursue Your Success.



1.Reliable Quality (We are OEM supplier of ASCO and Parker)



2.Over 20 years solenoid valve design and customize experience.



3.Mark Service(both Product and packing wiht your design and logo)



4.Related Supply Service, including Festo, SMC, , Airtac, Shako.



5.Good English communication



6.Opening Mind to growing with clients for different products.



(please continue reading to find out more detail)
