3 Plastic Solenoid Valve Irrigation System Battery Operated Irrigation Valve
3 Plastic Solenoid Valve Irrigation System Battery Operated Irrigation Valve
1. How To Order
Model Orifice Port Thread Body Seal Coil Voltage
NLZ11 20-20 25-25 1-3/4" G- G B-Brass N-NBR S21B 1-AC220V 2.DC24V
NLZ21 32-32 40-40 2-1/4" S-SS304,SS316 E-EPDM S91B 3-AC110V 4.DC12V
50-50 80-80 3-3/8" V-FRM/Viton L11B 5-AC24V 6-DC6V
4-1/2" SA11B 7-DC36V
NASS0543
NLZ11 3 Plastic Solenoid Valve Irrigation System Battery Operated Irrigation Valve
NLZ21 Irrigation Water Pressure Reducing Valve Rain Bird Irrigation Control Valve
Example : NLZ11 80 1 GBN S91B1: NLZ11 Series, 80mm orifice, G3", nylon body, NBR seals, AC220V.
2. Solenoid Valve Specification
Medium: water Temperature: NBR seal:-10℃~80℃(14℉~176℉)
Orifice: 20, 25, 32, 40, 50, 80(mm)
Pressure: 0.0MPA~1.0MPA (0.0PSI~145PSI) Port size: 3/4”, 1", 1-1/2”, 2”, 3”
Port thread: G Thread
Voltage: DC:12VDC, 24VDC, 8W Coils: SE02B,22VA(AC),17W(DC),IP65,100%ED
AC:24VAC, 110VAC, 220VAC L32B,22VA(AC),17W(DC),IP65,100%ED
Tolerance: ±10%
Material: Body- Nylon Character: 1. Pilot diaphragm structure with high strenth Nylon
Seal- NBR 2. 2 filteration to prevent solenoid stack
Armature- SS304 3. Isolation water proof coil
Plunger- SS430F 4. Slow closing to prevent water hammer damage
Stop- SS430F
Spring- SS304
Shading Rings- Copper
Special Coils: Latching coil DC6~24V
3. Detailed Information
3 Plastic Solenoid Valve Irrigation System Battery Operated Irrigation Valve
| Model | Port | Orifice | CV | Min. Pressure | Max. Pressure | Body Material | Seal Material | Coil |
| AC(22VA) | DC(17W) |
| NLZ1125GLN | 1" | 25 | 0.11 | 0.0Mpa | 1.6Mpa | 1.6Mpa | Nylon | NBR | SE02B L32B
|
| NLZ1140GLN | 1-1/2" | 40 | 0.18 | 0.0Mpa | 1.2Mpa | 1.2Mpa |
| NLZ1150GLN | 2" | 50 | 0.3 | 0.0Mpa | 1.0Mpa | 1.0Mpa |
| NLZ1180GLN | 3" | 80 | 0.18 | 0.0Mpa | 1.2Mpa | 1.2Mpa |
| NLZ2120GLN | 3/4" | 20 | 0.3 | 0.0Mpa | 1.0Mpa | 1.0Mpa |
| NLZ2125GLN | 1" | 25 | 0.34 | 0.0Mpa | 0.8Mpa | 0.8Mpa |

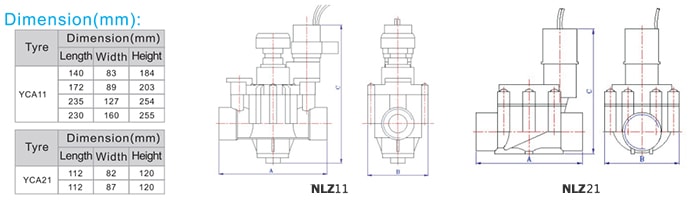

4. Diemsion

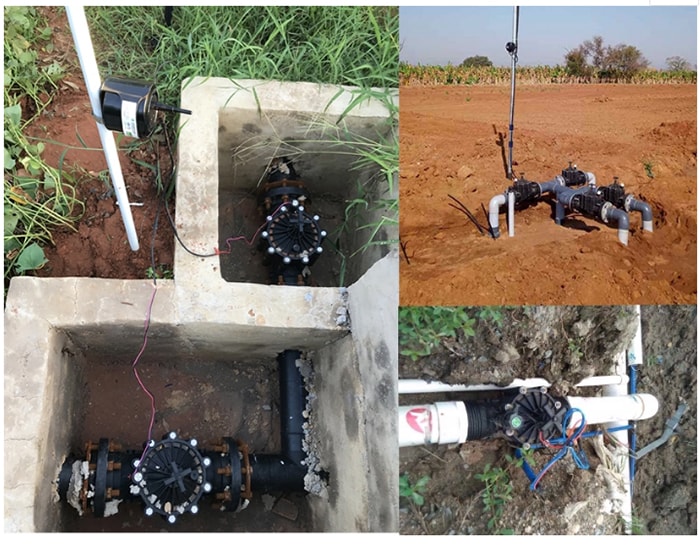

Solenoid Mounting and testing
5. Packing Detail
Plastic Sealed packing to prevent metal being oxidized.
6. More Product Photo and Certifications
7. Why US?
Our core advantages to pursue Your Success.
1.Reliable Quality (We are OEM supplier of ASCO and Parker)
2.Over 20 years solenoid valve design and customize experience.
3.Mark Service(both Product and packing wiht your design and logo)
4.Related Supply Service, including Festo, SMC, , Airtac, Shako.
5.Good English communication
6.Opening Mind to growing with clients for different products.
(please continue reading to find out more detail)
