Vacuum Acted Solenoid Control Valve Low Pressure Direct Lifting Diaphragm

NoNormal closed vacuum solenoid valve low pressure direct lifting diaphragm​rmal closed vacuum solenoid valve low pressure direct lifting diaphragm

1. How To Order

 Model      Orifice      Thread       Body           Seal           Coil            Voltage

  NLP21        12, 15, 20,         G- G              B-Brass            N-NBR             S51B          1-AC220V   2-DC24V

                       25,                     N- NPT         S-SS304/316    E-EPDM                    3-AC110V   4-DC12V

                                                                                                V-FRM/Viton             5-AC24V

NLP21 2 port Normal closed vacuum solenoid valve low pressure direct lifting diaphragm S51B DIN coil

Example : NLP21 20NBV S51B3: normal closed, 20mm orifice, NPT3/8", brass body, Viton seals, AC110V.

2. Solenoid Valve Specification

Medium:  Air, gas, Water, oil etc.                               Temperature: PTFE seal:-30℃~392℃(14℉~176℉)

Orifice:    12, 15, 20, 25(mm)                                                          EPDM seal:-30℃~120℃(-22℉~248℉)

                                                                                                           Viton seal:-30℃~150℃(-22℉~302℉)

                                                                                                                     PTFE seal:-60℃~200℃(-76℉~392℉)

Pressure: NLP21:0.0MPA~1.0MPA (0PSI~145PSI)            Port thread:   NPT, G Thread

                                                                        Port size:        3/8”, 1/2”, 1", NPT BSPP thread

Voltage:     DC:12V, 24V,                                                Coils:             S51B, 30VA(AC),24W(DC),IP65,100%ED

                 AC:24V, 110V, 120V, 220V, 240V

Tolerance: ±10%

Material:    Body- Brass, stainless steel, Aluminum,            Character:      1. Direct Lifting diaphragm

                 Seal- VITION, NBR, EPDM, PTFE                                      2. 0 Psi started

               Armature- SS304                                                                  3. low pressure system usage

                 Plunger- SS430F                                                                   4. Vacuum air usage.

                 Stop- SS430F

                 Spring- SS304

                 Shading Rings- Copper

                 Special Coils: Latching coil DC6~24V

3. Detailed Information

NLP21 2 port normal closed solenoid valve direct lifting diaphragm 0.0~1.0Mpa, S51B wire DIN coil

4. Diemsion

5. Packing Detail

Plastic Sealed packing to prevent metal being oxidized.

6. More Product Photo and Certifications

7. Why US?

Our core advantages to pursue Your Success.

1.Reliable Quality (We are OEM supplier of ASCO and Parker)

2.Over 20 years solenoid valve design and customize experience.

3.Mark Service(both Product and packing wiht your design and logo)

4.Related Supply Service, including Festo, SMC, , Airtac, Shako.

5.Good English communication

6.Opening Mind to growing with clients for different products.

(please continue reading to find out more detail)

Vacuum Acted Solenoid Control Valve

12mm Solenoid Control Valve

145PSI Solenoid Control Valve

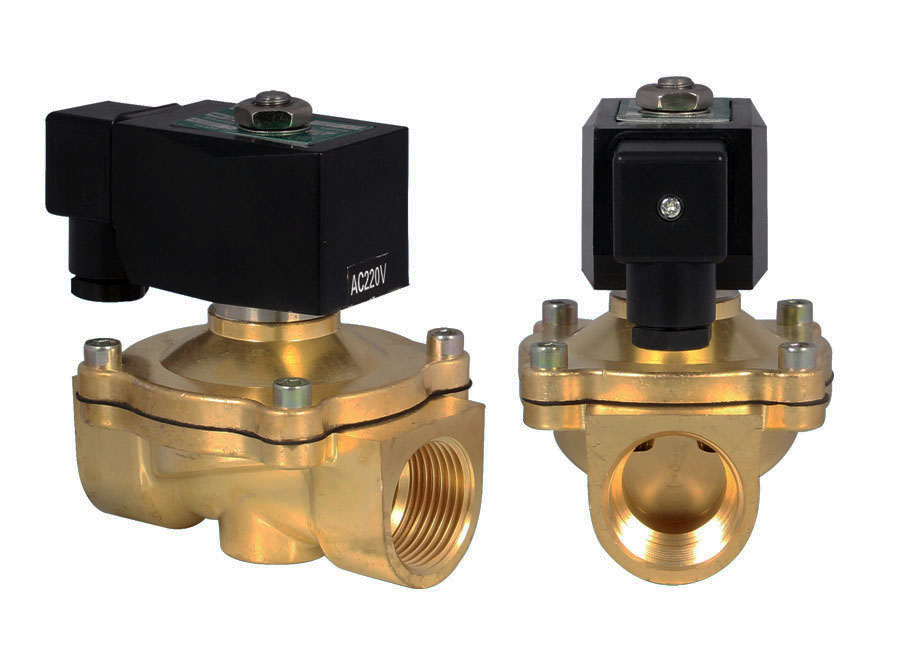

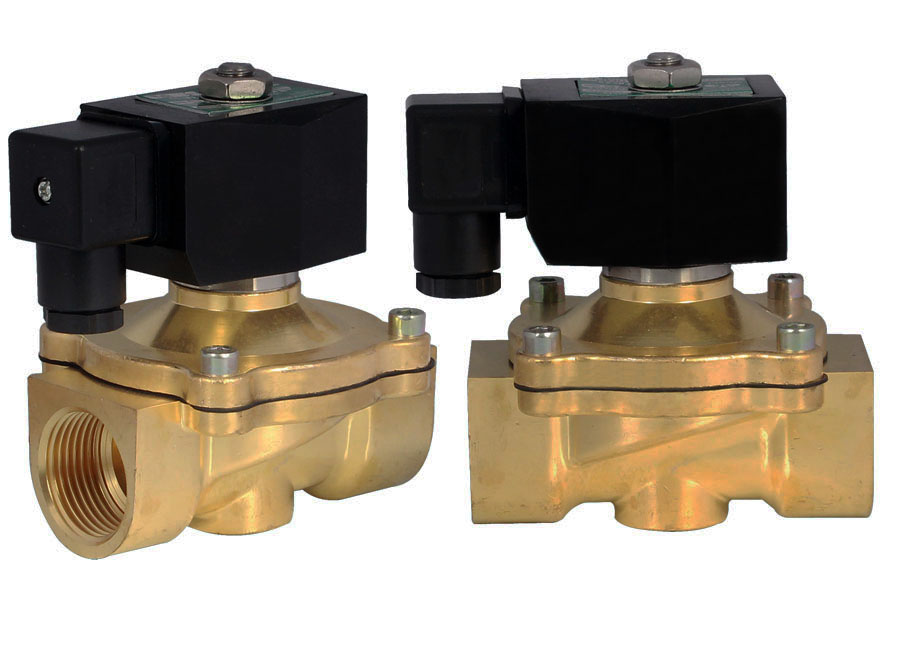

Vacuum Acted Solenoid Control Valve Low Pressure Direct Lifting Diaphragm Images
