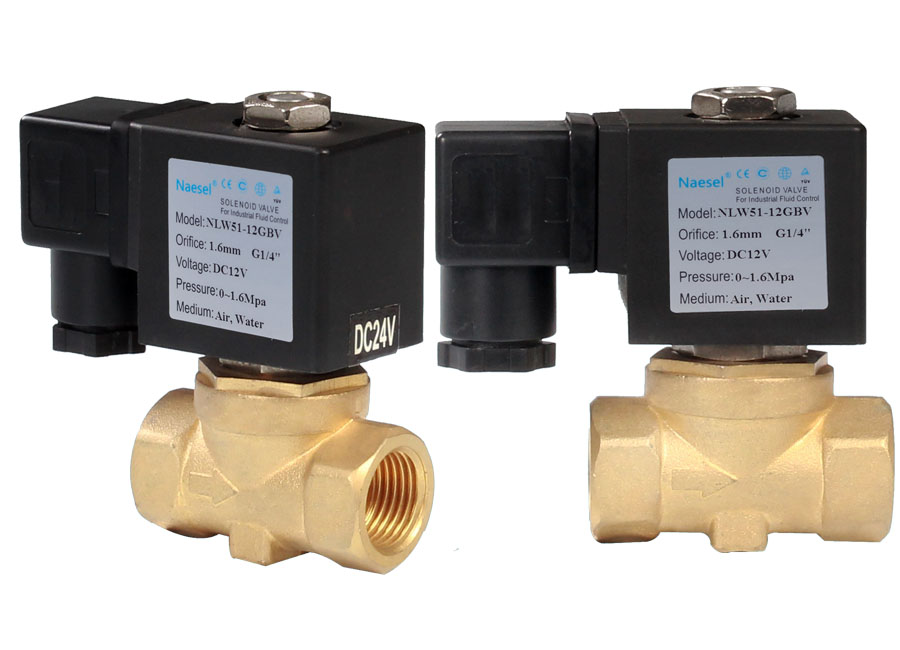

Normal opened solenoid control valve fast respond solenoid valve for air compressor
Normal opened solenoid control valve fast respond solenoid valve for air compressor
1. How To Order
Model Orifice Port Thread Body Seal Coil Voltage
NLHN52 16-1.6 35-3.5 1-1/8" G- G B-Brass N-NBR S91B 1-AC220V 2.DC24V
20-2.0 40-4.0 2-1/4" N- NPT E-EPDM 3-AC110V 4.DC12V
25-2.5 50-5.0 V-FRM/Viton 5-AC24V 6-DC36V
30-3.0
NLHN52 normally open with S91B coil,
Example : NLHN52 25 1 GBV S91B1: NLHN52 Series, Normally open, 2.5mm orifice, G1/8", brass body, FKM seals, coil S91B, AC220V.
2. Solenoid Valve Specification
Medium: Air, water, steam, oil, etc. Temperature: NBR seal:-10℃~80℃(14℉~176℉)
Orifice: 1.6, 2.0, 2.5, 3.0, 3.5, 4.0(mm) EPDM seal:-30℃~120℃(-22℉~248℉)
Viton seal:-30℃~150℃(-22℉~302℉)
Pressure: NLHN52:0.0MPA~1.6MPA (0.0PSI~232PSI) Port thread: NPT, G Thread
Port size: 1/8”, 1/4”NPT G thread
Voltage: DC:12V, 24V, 36V, Coils: S91B,22VA(AC),17W(DC),IP65,100%ED
AC:24V, 110V, 120V, 220V, 240V
Tolerance: ±10%
Material: Body- Brass, stainless steel, Aluminum, Character: 1. Compact design to save the space.
Seal- VITION, NBR, EPDM, PTFE 2. Direct acting, 0 bar generated.
Armature- SS304 3. Used for air compressor
Plunger- SS430F
Stop- SS430F
Spring- SS304
Shading Rings- Copper
Special Coils: Latching coil DC6~24V
3. Detailed Information
| Model | Port | Orifice | CV | Min. Pressure | Max. Pressure | Body Material | Seal Material | Coil |
| AC(9VA) | DC(6W) |
| NLHN52161XXX | 1/8" | 1.6 | 0.11 | 0.0Mpa | 1.6Mpa | 1.6Mpa | Brass | NBR EPDM Viton (FKM) | S91B |
| NLHN52251XXX | 1/8" | 2.5 | 0.18 | 0.0Mpa | 1.2Mpa | 1.2Mpa | S91B |
| NLHN52301XXX | 1/8" | 3.0 | 0.3 | 0.0Mpa | 1.0Mpa | 1.0Mpa | S91B |
| NLHN52252XXX | 1/4" | 2.5 | 0.18 | 0.0Mpa | 1.2Mpa | 1.2Mpa | S91B |
| NLHN52302XXX | 1/4" | 3.0 | 0.3 | 0.0Mpa | 1.0Mpa | 1.0Mpa | S91B |
| NLHN52252XXX | 1/4" | 3.5 | 0.34 | 0.0Mpa | 0.8Mpa | 0.8Mpa | S91B |
| NLHN52302XXX | 1/4" | 4.0 | 0.5 | 0.0Mpa | 0.6Mpa | 0.6Mpa | S91B |
4. Diemsion
5. Packing Detail
Plastic Sealed packing to prevent metal being oxidized.
