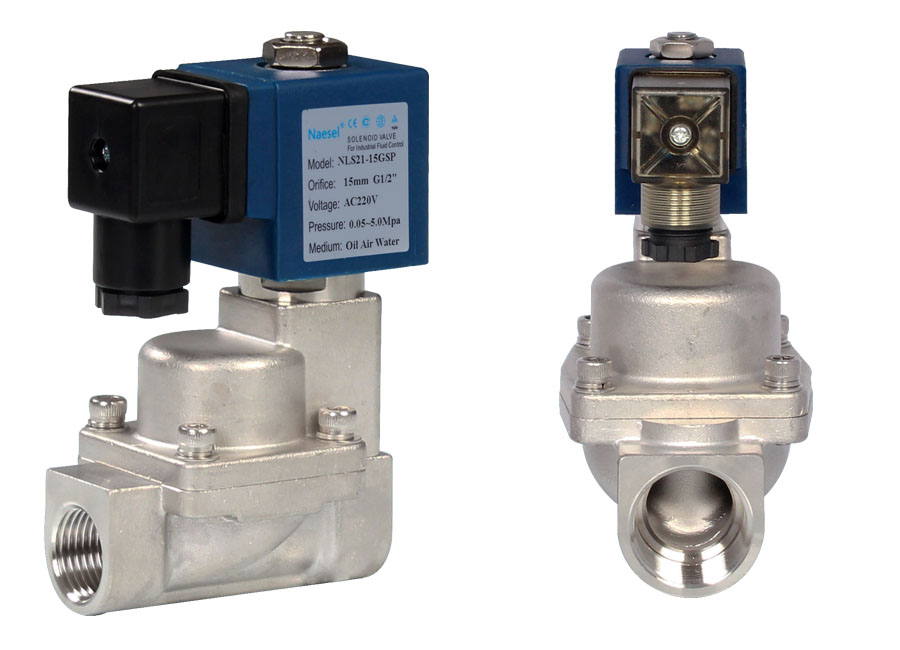

injection machine high pressure solenoid valve pilot diaphragm 3 / 4 inch
Injection machine high pressure solenoid valve pilot diaphragm 3 / 4 inch
1. How To Order
Model Orifice Port Thread Body Seal Coil Voltage
NLS11 15 3/8" G- G B-Brass U-PU S91B 1-AC220V 2.DC24V
, 1/2" N- NPT NASS0543 3-AC110V 4.DC12V
3/4" F-Flange 5-AC24V
NLS11 normally closed pilot diaphragm steam hot oil solenoid valve with S91B, coil,
Example : NLS2 25 1 GBP S91B1: NLKH31 type, normal closed 25mm orifice, G1", brass body, PTFE seals.
2. Solenoid Valve Specification
Medium: Compressed air, water etc Temperature: PU seal:-30℃~150℃(-22℉~302℉)
Orifice: 12, 15, 20(mm)
Pressure: NLS11:0.03MPA~5.0MPA (4.5PSI~725PSI) Port size: 3/8”, 1/2”, 3/4”
Port thread: NPT, G Thread
Voltage: DC:12V, 24V, Coils: S91B,22VA(AC),17W(DC),IP65,100%ED
AC:24V, 110V, 120V, 220V, 240V
Tolerance: ±10%
Material: Body- Brass, stainless steel, Aluminum, Character: 1. Pilot piston for compressed air
Seal- VITION, NBR, EPDM, PTFE 2. 2 bar Pressure started
Armature- SS304 3. Suitable for long term pipe line system
Plunger- SS430F 4. suitbale for low pressure system
Stop- SS430F
Spring- SS304
Shading Rings- Copper
3. Detailed Information
NLS11 normally closed pilot diaphragm solenoid valve with S91B coil,
| Model | Port | Orifice | CV | Min. Pressure | Max. Pressure | Body Material | Seal Material | Coil |
| AC(22VA) | DC(17W) |
| NLS1112XXX | 3/8" | 15 | 4.5 | 0.03Mpa | 5.0Mpa | 5.0Mpa | Brass | PU | S91B |
| NLS1115XXX | 1/2" | 15 | 4.5 | 0.03Mpa | 5.0Mpa | 5.0Mpa | S91B |
| NLS1120XXX | 3/4" | 15 | 4.5 | 0.03Mpa | 5.0Mpa | 5.0Mpa | S91B |
NLS12 normally closed pilot diaphragm solenoid valve with S91B coil,
| Model | Port | Orifice | CV | Min. Pressure | Max. Pressure | Body Material | Seal Material | Coil |
| AC(22VA) | DC(17W) |
| NLS1212XXX | 3/8" | 15 | 4.5 | 0.03Mpa | 5.0Mpa | 5.0Mpa | Brass | PU | S91B |
| NLS1215XXX | 1/2" | 15 | 4.5 | 0.03Mpa | 5.0Mpa | 5.0Mpa | S91B |
| NLS1220XXX | 3/4" | 15 | 4.5 | 0.03Mpa | 5.0Mpa | 5.0Mpa | S91B |
4. Diemsion
5. Packing Detail
Plastic Sealed packing to prevent metal being oxidized.
6. More Product Photo and Certifications
7. Why US?
Our core advantages to pursue Your Success.
1.Reliable Quality (We are OEM supplier of ASCO and Parker)
2.Over 20 years solenoid valve design and customize experience.
3.Mark Service(both Product and packing wiht your design and logo)
4.Related Supply Service, including Festo, SMC, , Airtac, Shako.
5.Good English communication
6.Opening Mind to growing with clients for different products.
