Pilot Piston High Pressure Solenoid Control Valve For Plastic Injection Machine

Pilot Piston high pressure solenoid valve for plastic injection machine

Pilot Piston high pressure solenoid valve for plastic injection machine

1. How To Order

 Model      Orifice         Port        Thread        Body         Seal           Coil           Voltage

  NLS41           9.0(mm)            2-1/4"             G- G             B-Brass            P-PTFE         GE11B           1-AC220V   2.DC24V

                                                 3-3/8"             N- NPT         S-SS304/316    V-Viton          S91B             3-AC110V   4.DC12V

                                                  4-1/2"                                                                                                        5-AC24V

NLS41,Pilot Piston acted high pressure solenoid valve 0-100 bar

Example : NLS41 10 2 GST S91B1: NLS41 type, normal closed, 9.0mm orifice, G1/4", Stainless steel body, PTFE seals.

2. Solenoid Valve Specification

Medium:  hot water, steam, oil, etc.                             Temperature: Viton seal:-30℃~150℃(-22℉~302℉)

Orifice:    1.0, 1.6(mm)                                                                    PET seal:-40℃~150℃(-40℉~302℉)

Pressure: NLS41:0.00MPA~12MPA (0.0PSI~1740PSI)       Port size:       1/4”, 3/8”, 1/2”

                                                                                                Port thread:    NPT, G Thread

Voltage:    DC:12VDC, 24VDC,                                         Coils:              GE11B,5.5VA(AC),3W(DC),IP65,100%ED

                AC:24VAC, 110VAC, 120VAC, 220VAC, 240VAC                      S91B, 22VA(AC),17W(DC),IP65,100%ED

Tolerance: ±10%

Material:    Body- Brass, stainless steel, Aluminum,            Character:       1. Pilot piston strcuture

                 Seal- PEEK PTFE                                                           2. Suitable for air compressor

               Armature- SS304                                                                3. PTFE/Viton Seal

                 Plunger- SS430F                                                                 4. Low consumption coil(4.5W DC)

                  Stop- SS430F

                  Spring- SS304

                  Shading Rings- Copper

3. Detailed Information

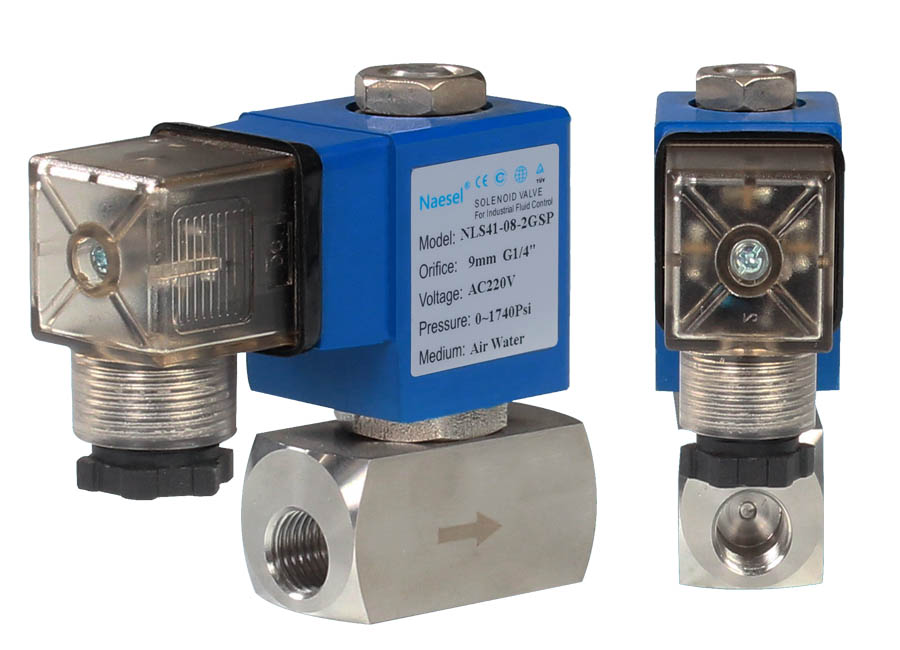

NLS41 normally closed high pressure solenoid valve with GE11B energy saving coil,

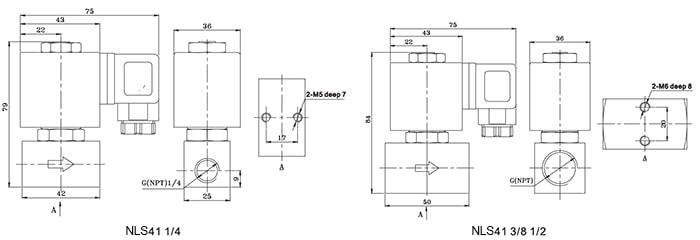

4. Diemsion

5. Packing Detail

Plastic Sealed packing to prevent metal being oxidized.

6. More Product Photo and Certifications

7. Why US?

Our core advantages to pursue Your Success.

1.Reliable Quality (We are OEM supplier of ASCO and Parker)

2.Over 20 years solenoid valve design and customize experience.

3.Mark Service(both Product and packing wiht your design and logo)

4.Related Supply Service, including Festo, SMC, , Airtac, Shako.

5.Good English communication

6.Opening Mind to growing with clients for different products.

(please continue reading to find out more detail)
