2 " 50mm Orifice Dust Collector Pulse Valve Goyen Replaceable Low Pressure

goyeGoyen replaceable 2" 50mm orifice dust collection pulse valve replaceable 2" 50mm orifice dust collection pulse valve

1. How To Order

 Model    Orifice     Port      Thread       Body           Seal           Coil            Voltage

NLG11      25, 40, 50,     1" , 1-1/2",     G- BSPP     A-Aluminum      N-NBR           S044           1-AC220V   2.DC24V

                 62, 76,           2", 2-1/2",      R- BSPT                                                      S051           3-AC110V  4.DC12V

                                                                                                                                                  5-AC24V

NLG11 normally closed dust collection pluse solenoid valve.

Example : NLG11-50 GAN S051 1: NLG11 Series,  25mm orifice, G1", Aluminum body, NBR seals, coil S044, 220V.

2. Solenoid Valve Specification

Medium:  Clean compressed air etc.                            Temperature: NBR seal:-5℃~55℃(-22℉~248℉)

Orifice:    25, 40, 50, 62, 76,(mm)

Pressure: NLG11:0.3MPA~0.8MPA (45PSI~110PSI)          Port size:       1”, 1-1/2”, 2", 2-1/2", Y submerged type

Tolerance: ±10%                                                                  Port thread:    BSPT, G Thread

Voltage:    AC220V DC24V                                             Coils:              S044, S051

Material:    Body- Aluminum                                                 Character:   1.Isolation Piston structure, longer life time,

                 Seal- NBR                                                                         PTFE seals, ambient is completely isolated

               Armature- SS304                                                             from metal parts

                 Plunger- SS430F                                                             2. used in Alkali, Acid, Salts etc.

                 Stop- SS430F

                 Spring- SS304

3. Detailed Information

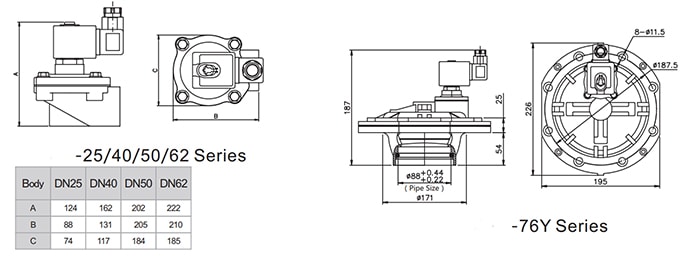

4. Diemsion

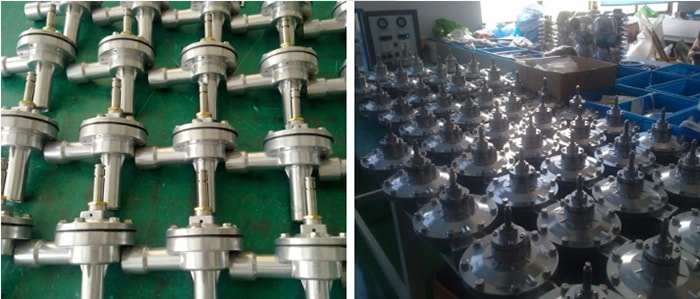

5. Packing Detail

Plastic Sealed packing to prevent metal being oxidized.

6. More Product Photo and Certifications

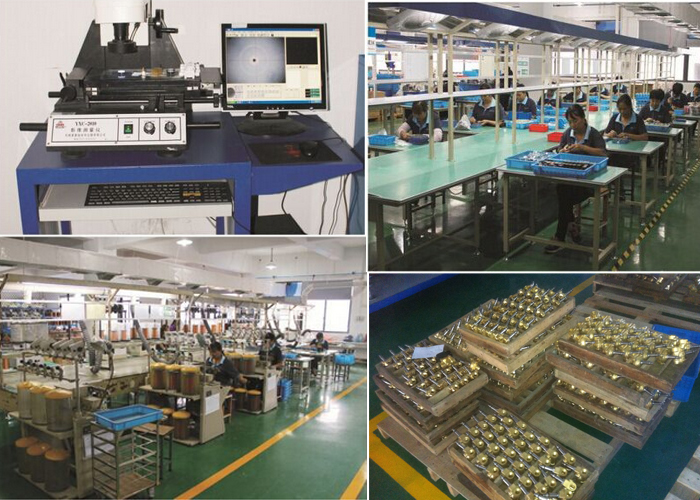

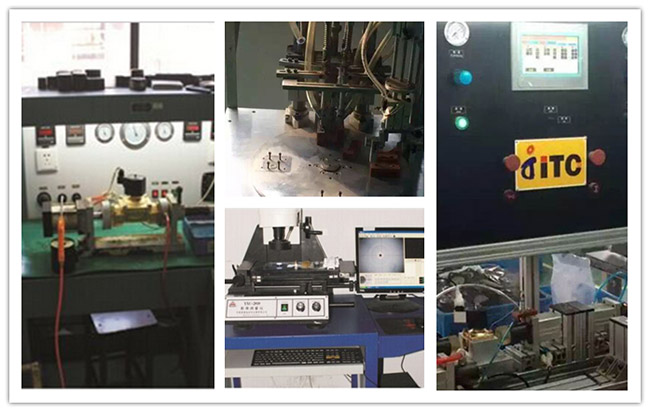

7. Factory Photos and Certifications

8. Why US?

Our core advantages to pursue Your Success.

1.Reliable Quality (We are OEM supplier of ASCO and Parker)

2.Over 20 years solenoid valve design and customize experience.

3.Mark Service(both Product and packing wiht your design and logo)

4.Related Supply Service, including Festo, SMC, , Airtac, Shako.

5.Good English communication

6.Opening Mind to growing with clients for different products.

(please continue reading to find out more detail)
