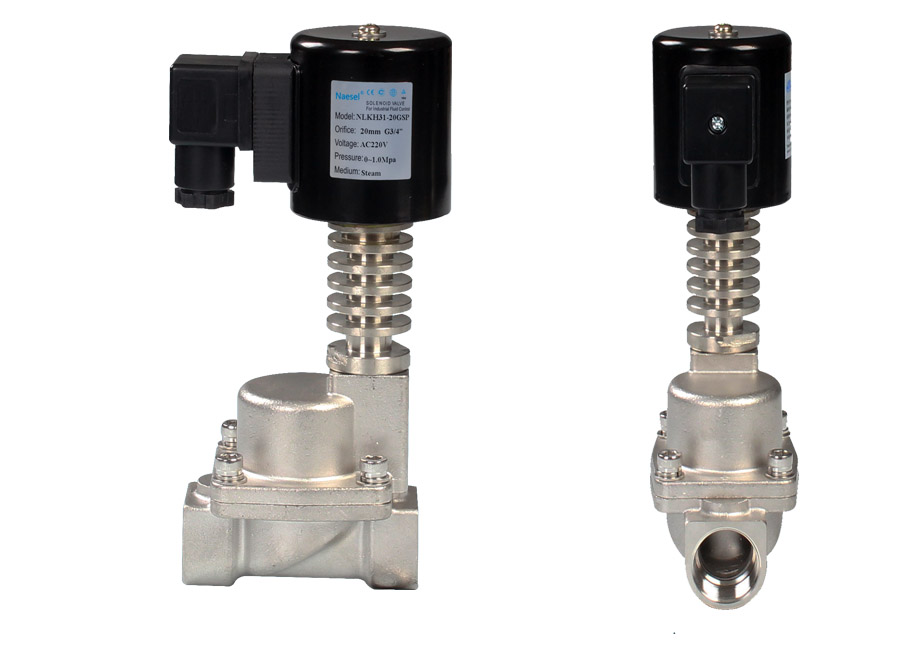

Stainless Steel High Temperature Solenoid Valve Pilot Operated AC220V Normal Closed
Stainless Steel High Temperature Solenoid Valve Pilot Operated AC220V Normal Closed
1. How To Order
Model Orifice Port Thread Body Seal Coil Voltage
NLKT11 12, 15, 20 3/8"-2" G- G B-Brass P-PTFE Y21H 1-AC220V 2.DC24V
25, 32, 40, N- NPT S-SS304/316 T-FPEEK 3-AC110V 4.DC12V
50, F-Flange 5-AC24V
NLKT11 Stainless Steel High Temperature Solenoid Valve Pilot Operated AC220V Normal Closed
Example : NLKT11 32 1 GBP S91B1: NLKT11 type, normal closed 32mm orifice, G1-1/4", brass body, PTFE seals.
2. Solenoid Valve Specification
Medium: hot water, steam, oil, etc. Temperature: Viton seal:-30℃~150℃(-22℉~302℉)
Orifice: 12, 15, 20, 25, 32,40,50, PTFE seal:-60℃~200℃(-76℉~392℉)
65, 80, 100, 125,150(mm)
Pressure: NLK31:0.05MPA~1.6MPA (7.5PSI~232PSI) Port size: 3/8”, 1/2”, 3/4”, 1” , 1-1/4", 1-1/2",2"
NLK32:0.05MPA~1.6MPA (7.5PSI~232PSI) F2-1/2", F3", F3-1/2", F4", F5"
NLK31F:0.05MPA~1.6MPA (7.5PSI~232PSI) Port thread: NPT, G Thread
Voltage: DC:12VDC, 24VDC, Coils: S21H,22VA(AC),18W(DC),IP65,100%ED
AC:24VAC, 110VAC, 120VAC, 220VAC, 240VAC YG1B,30VA(AC),21W(DC),IP65,100%ED
Tolerance: ±10%
Material: Body- Brass, stainless steel, Aluminum, Character: 1. Pilot piston low consumption for steam
Seal- VITION, NBR, EPDM, PTFE 2. Seals suitable for steam
Armature- SS304 3. Suitable for long term pipe line system
Plunger- SS430F
Stop- SS430F
Spring- SS304
Shading Rings- Copper
3. Detailed Information
Stainless Steel High Temperature Solenoid Valve Pilot Operated AC220V Normal Closed
| Model | Port | Orifice | CV | Min. Pressure | Max. Pressure | Body Material | Seal Material | Coil |
| AC(22VA) | DC(17W) |
| NLKT1112XXX | 3/8" | 12 | 4.5 | 0.05Mpa | 1.6Mpa | 1.6Mpa | Brass SS304 SS316 | PTFE PEEK | Y21H |
| NLKT1115XXX | 1/2" | 15 | 4.5 | 0.05Mpa | 1.6Mpa | 1.6Mpa | Y21H |
| NLKT1120XXX | 3/4" | 20 | 9.3 | 0.05Mpa | 1.6Mpa | 1.6Mpa | Y21H |
| NLKT1125XXX | 1" | 25 | 12 | 0.05Mpa | 1.6Mpa | 1.6Mpa | Y21H |
| NLKT1132XXX | 1-1/4" | 32 | 24 | 0.05Mpa | 1.6Mpa | 1.6Mpa | Y21H |
| NLKT1140XXX | 1-1/2" | 40 | 29 | 0.05Mpa | 1.6Mpa | 1.6Mpa | Y21H |
| NLKT1150XXX | 2" | 50 | 48 | 0.05Mpa | 1.6Mpa | 1.6Mpa | Y21H |
| NLKT1125XXX | F1" | 25 | 12 | 0.05Mpa | 1.6Mpa | 1.6Mpa | Y21H |
| NLKT1132XXX | F1-1/4" | 32 | 24 | 0.05Mpa | 1.6Mpa | 1.6Mpa | Y21H |
| NLKT1140XXX | F1-1/2" | 40 | 29 | 0.05Mpa | 1.6Mpa | 1.6Mpa | Y21H |
| NLKT1150XXX | F2" | 50 | 48 | 0.05Mpa | 1.6Mpa | 1.6Mpa | Y21H |
4. Diemsion
5. Packing Detail
Plastic Sealed packing to prevent metal being oxidized.
6. More Product Photo and Certifications
7. Why US?
Our core advantages to pursue Your Success.
1.Reliable Quality (We are OEM supplier of ASCO and Parker)
2.Over 20 years solenoid valve design and customize experience.
3.Mark Service(both Product and packing wiht your design and logo)
4.Related Supply Service, including Festo, SMC, , Airtac, Shako.
5.Good English communication
6.Opening Mind to growing with clients for different products.
