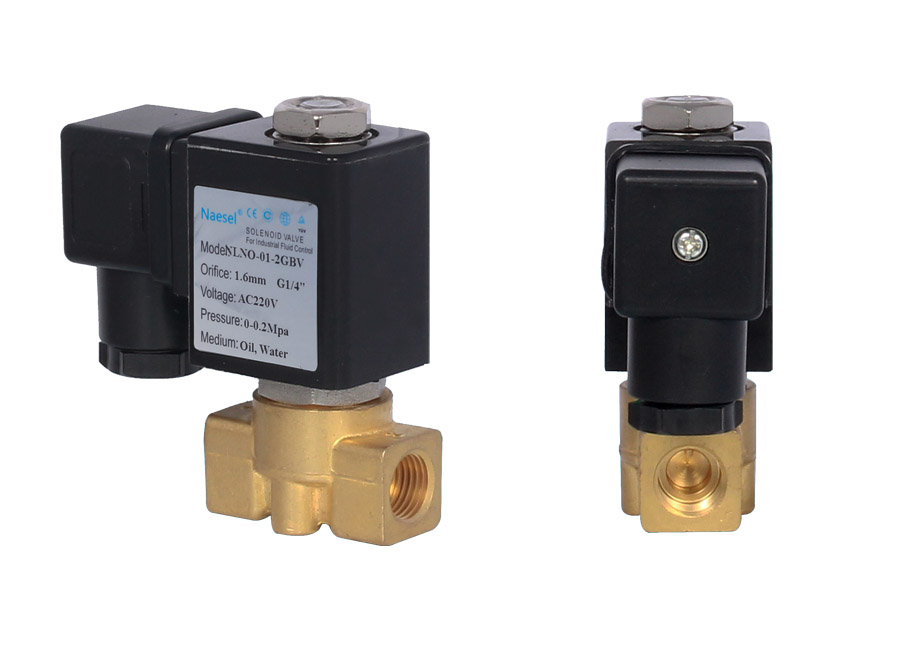

Multiple Solenoid Valve Free Installation as Need DC 12V 1 / 8 1 / 4 NPT
1. How To Order
Model Orifice Port Thread Body Seal Coil Voltage
NLHO 50-5.0 mm 1--1/8" G- G B-Brass N-NBR S11B 1-AC220V 2.DC24V
60-6.0mm 2--1/4" N- NPT S-SS304/316 V-FKM 3-AC110V 4.DC12V
11-10.0mm R- BSPT Aluminum 5-AC24V 6-DC6V
Multiple Solenoid Valve Free Installation as Need DC 12V 1 / 8 1 / 4 NPT
Example : NLHO11 GBN S11B1: NLHO11 Series, Normal closed, 5mm orifice, G1/2", brass body, NBR seals, Coil S11B, AC220V.
2. Solenoid Valve Specification
Medium: Air, water, etc. Temperature: NBR seal:-10℃~80℃(-22℉~302℉)
Orifice: 5,6, 10 (mm) Viton seal:-30℃~80℃(-22℉~302℉)
Pressure: NLHO:0.00MPA~0.1MPA (0.0PSI~14.5PSI)
Port thread: NPT, G Thread Port size: 1/8”, 1/4”,
Voltage: DC:6VDC,12VDC, 24VDC, 36VDC, Coils: S11B 13VA(AC),11W(DC),Coil IP68,100%ED
AC:24VAC, 110VAC, 120VAC, 220VAC, 240VAC
Tolerance: ±10% Character: 1. Compact design to save the space.
Material: Body- Brass, stainless steel, Aluminum, 2. Direct acting, 0 bar generated.
Seal- VITION, NBR,
Armature- SS304
Plunger- SS430F
Stop- SS430F
Spring- SS304
Shading Rings- Copper
Special Coils: Latching coil DC6~24V
3. Dimension
4. Specification Detail
Micro Miniature Mini Manifold Solenoid Valve Multi Unit Installation 24V 12V 1 / 8 to 1 / 2 NPT BSPP 232 PSI
| Model | Port | Orifice | CV | Min. Pressure | Max. Pressure | Body Material | Seal Material | Coil |
| AC(13VA) | DC(11W) |
| NLHO-50-1XXX | 1/8" | 5.0 | 0.11 | 0.00Mpa | 0.1Mpa | 0.1Mpa | Brass Aluminum | Viton (FKM) NBR | S11B |
| NLHO-60-1XXX | 1/4" | 6.0 | 0.18 | 0.00Mpa | 0.1Mpa | 0.1Mpa | S11B |
| NLHO-50-2XXX | 1/8" | 5.0 | 0.3 | 0.00Mpa | 0.1Mpa | 0.1Mpa | S11B |
| NLHO-60-2XXX | 1/4" | 6.0 | 0.3 | 0.00Mpa | 0.1Mpa | 0.1Mpa | S11B |
| NLHO-11-2XXX | 1/4" | 10.0 | 0.3 | 0.00Mpa | 0.1Mpa | 0.1Mpa | S11B |
