Direct Lifting Vacuum Solenoid Valve , Diaphragm Type Gravity Feed Solenoid Valve

WENZHOU NAISAILE SOLENOID VALVE CO.,LTD
Contact Now

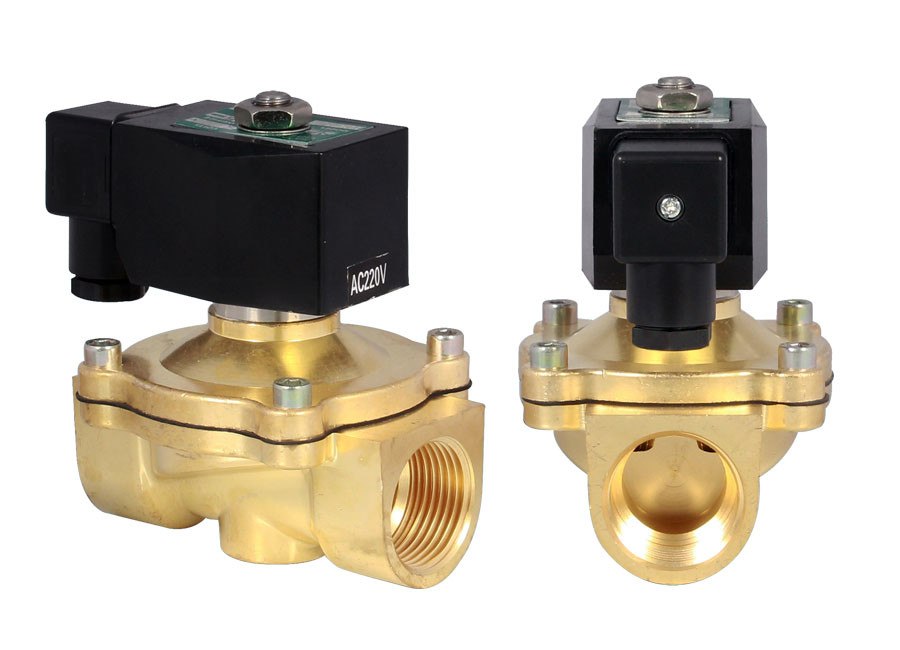

Direct Lifting Vacuum Solenoid Valve , Diaphragm Type Gravity Feed Solenoid Valve

  • 1
  • 2

Brand Name : Naesel

Model Number : NLP21

Certification : CE CQC TUV ROHS VDE Intertek ETL

Place of Origin : China

MOQ : 10

Price : Negotiation

Payment Terms : Western Union, MoneyGram, L/C, T/T, Paypal

Supply Ability : 10000PCS Per Month

Delivery Time : 1-3 days

Packaging Details : carton with solid inner box as below photo

Material : brass, stainless steel 304,430, FKM,

Temperature : -30℃~150℃(-22℉~302℉)

Port : 3/8", 1/2", 3/4", 1" NPT BSPP

Thread : NPT, G, BSPP Thread

Orifice : 12, 15, 20, 25(mm)

Voltage : DC:,12V 24V, AC:24V, 120V, 240V/60HZ, 110V,220V/50HZ

Seal Material : FKM EPDM NBR

Fluid : Vacuum, air, etc.

Pressure : 0.0MPA~1.0MPA (0PSI~145PSI)

Charactoristics : vacuum acted

Motion Type : low pressure direct lifting diaphragm

Valve Type : Normally Closed

Connection type : Thread or Flange

Application : for vacuum system

Contact Now

SoSolenoid Valve for Vacuum Line Direct Lifting Diaphragm Type 3 / 8 1 / 2 3 / 4 1 inchlenoid Valve for Vacuum Line Direct Lifting Diaphragm Type 3 / 8 1 / 2 3 / 4 1 inch

Direct Lifting Vacuum Solenoid Valve , Diaphragm Type Gravity Feed Solenoid Valve

Direct Lifting Vacuum Solenoid Valve , Diaphragm Type Gravity Feed Solenoid Valve























































































































1. How To Order


 Model      Orifice      Thread       Body           Seal           Coil            Voltage

  NLP21        12, 15, 20,         G- G              B-Brass                N-NBR             S51B          1-AC220V   2-DC24V

                       25,                     N- NPT          S-SS304/316        E-EPDM                              3-AC110V   4-DC12V

                                                                                                     V-FRM/Viton                       5-AC24V





NLP21 2 port Normal closed Solenoid Valve for Vacuum Line Direct Lifting Diaphragm Type 3 / 8 1 / 2 3 / 4 1 inch

Example : NLP21 20NBV S51B3normal closed, 20mm orifice, NPT3/8", brass body, Viton seals, AC110V.


2. Solenoid Valve Specification

Medium:  Air, gas, Water, oil etc.                               Temperature: PTFE seal:-30℃~392℃(14℉~176℉)

Orifice:    12, 15, 20, 25(mm)                                                          EPDM seal:-30℃~120℃(-22℉~248℉)

                                                                                                           Viton seal:-30℃~150℃(-22℉~302℉)

                                                                                                                     PTFE seal:-60℃~200℃(-76℉~392℉)



Pressure: NLP21:0.0MPA~1.0MPA (0PSI~145PSI)            Port thread:   NPT, G Thread

                                                                        Port size:        3/8”, 1/2”, 1", NPT BSPP thread



Voltage:     DC:12V, 24V,                                                Coils:             S51B, 30VA(AC),24W(DC),IP65,100%ED

                 AC:24V, 110V, 120V, 220V, 240V

Tolerance: ±10%



Material:    Body- Brass, stainless steel, Aluminum,            Character:      1. Direct Lifting diaphragm

                 Seal- VITION, NBR, EPDM, PTFE                                      2. 0 Psi started

               Armature- SS304                                                                  3. low pressure system usage

                 Plunger- SS430F                                                                   4. Vacuum air usage.

                 Stop- SS430F

                 Spring- SS304

                 Shading Rings- Copper

                 Special Coils: Latching coil DC6~24V


3. Detailed Information

NLP21 2 port normal closed Solenoid Valve for Vacuum Line Direct Lifting Diaphragm Type 3 / 8 1 / 2 3 / 4 1 inch

Model Port Orifice CV Min. Pressure Max. Pressure Body Material Seal Material Coil
AC(40VA) DC(18W)
NLP212XXX 3/8" 12 4.5 0.0Mpa 1.0Mpa 1.0Mpa

Brass

NBR

EPDM

Viton

(FKM)

S51B
NLP215XXX 1/2" 15 4.5 0.0Mpa 1.0Mpa 1.0Mpa S51B
NLP220XXX 3/4" 20 9.3 0.0Mpa 1.0Mpa 1.0Mpa S51B
NLP225XXX 1" 25 12 0.0Mpa 1.0Mpa 1.0Mpa S51B

















4. Diemsion


Direct Lifting Vacuum Solenoid Valve , Diaphragm Type Gravity Feed Solenoid Valve






Core Advantage-Customized packing service.

1. We can offer laser mark Service and transform your company information

and your part number of the products into QR code,

So that when your clients scan the QR code, they gets your company informations.

2. Customized cartons and box design are also available

Direct Lifting Vacuum Solenoid Valve , Diaphragm Type Gravity Feed Solenoid Valve

Direct Lifting Vacuum Solenoid Valve , Diaphragm Type Gravity Feed Solenoid Valve


6. Factory Photos and Certifications

Direct Lifting Vacuum Solenoid Valve , Diaphragm Type Gravity Feed Solenoid Valve

Direct Lifting Vacuum Solenoid Valve , Diaphragm Type Gravity Feed Solenoid Valve

7. Why US?

Our core advantages to pursue Your Success.



1. Reliable Quality (We are OEM supplier of ASCO and XParker)



2. Over 20 years solenoid valve design and customize experience.



3. Mark Service(both Product and packing wiht your design and logo)



4. Related Supply Service, including Festo, SMC, , Airtac, Shako.



5. Good English communication



6. Opening Mind to growing with clients for different products.



(please continue reading to find out more detail)



Direct Lifting Vacuum Solenoid Valve , Diaphragm Type Gravity Feed Solenoid Valve
