SS 1.6 MPA 16 Bar 230 PSI Piston Solenoid Valve With Teflon Seal Normally Opened

Name: SS 16 MPA 16 Bar 230 PSI Piston Solenoid Valve With Teflon Seal Normally Opened
Brand: Naesel
Price: 1 USD

Buy cheap SS 1.6 MPA 16 Bar 230 PSI Piston Solenoid Valve With Teflon Seal Normally Opened product

Brand Name : Naesel

Model Number : NLK31/32

Certification : CE CQC TUV ROHS VDE Intertek ETL

Place of Origin : China

MOQ : 10

Price : Negotiation

Payment Terms : Western Union, MoneyGram, L/C, T/T, Paypal

Supply Ability : 10000PCS Per Month

Delivery Time : 3-7 days

Packaging Details : carton with solid inner box as below photo

Temperature : -30℃~150℃（-22℉~302℉）

Material : brass, stainless steel 304,430, FKM,

Port : 3/8”, 1/2”,3/4”,1", 1-1/4", 1-1/2", 2"

Thread : NPT, G, BSPP Thread

Orifice : 12, 15, 20, 25, 32, 40, 50, 65, 80, 100,125, 150(mm)

Voltage : DC:,12VDC, 24VDC, AC:24V, 120V, 240V/60HZ, 110V,220V/50HZ

Seal Material : FKM PTFE

Fluid : hot water, steam, oil, etc.

Pressure : 0.0MPA~1.6MPA (0.0PSI~232PSI)

Charactoristics : pilot piston type, low consumption

Motion Type : pilot piston

Valve Type : Normally Closed or Normally opened

Contact Now

SS Solenoid Valve DN10 to DN50 7 to 230 PSI Pilot Piston Type 1.6 MPA 16 Bar 230 PSI Teflon Seal

SS 1.6 MPA 16 Bar 230 PSI Piston Solenoid Valve With Teflon Seal Normally Opened

1. How To Order

Model Orifice Port Thread Body Seal Coil Voltage

NLK31 12, 15, 20 3/8"-F5" G- G B-Brass P-PTFE S21H 1-AC220V 2.DC24V

NLK32 25, 32, 40, N- NPT S-SS304/316 V-FRM/Viton YG1B 3-AC110V 4.DC12V

50, 65, 80, F- Flange 5-AC24V

100, 125,

150

NLK31 SS Solenoid Valve DN10 to DN50 7 to 230 PSI Pilot Piston Type 1.6 MPA 16 Bar 230 PSI Teflon Seal

NLK32 normally open SS Solenoid Valve DN10 to DN50 7 to 230 PSI Pilot Piston Type 1.6 MPA 16 Bar 230 PSI Teflon Seal

Example : NLK31 32 1 GBP S91B1: NLK31 type, normal closed 32mm orifice, G1-1/4", brass body, PTFE seals.

2. Solenoid Valve Specification

Medium: hot water, steam, oil, etc. Temperature: Viton seal:-30℃~150℃(-22℉~302℉)

Orifice: 12, 15, 20, 25, 32,40,50, PTFE seal:-60℃~200℃(-76℉~392℉)

65, 80, 100, 125,150(mm)

Pressure: NLK31:0.05MPA~1.6MPA (7.5PSI~232PSI) Port size: 3/8”, 1/2”, 3/4”, 1” , 1-1/4", 1-1/2",2"

NLK32:0.05MPA~1.6MPA (7.5PSI~232PSI) F2-1/2", F3", F3-1/2", F4", F5"

NLK31F:0.05MPA~1.6MPA (7.5PSI~232PSI) Port thread: NPT, G Thread

Voltage: DC:12VDC, 24VDC, Coils: S21H,22VA(AC),18W(DC),IP65,100%ED

AC:24VAC, 110VAC, 120VAC, 220VAC, 240VAC YG1B,30VA(AC),21W(DC),IP65,100%ED

Tolerance: ±10%

Material: Body- Brass, stainless steel, Aluminum, Character: 1. Pilot piston low consumption for steam

Seal- VITION, NBR, EPDM, PTFE 2. Seals suitable for steam

Armature- SS304 3. Suitable for long term pipe line system

Plunger- SS430F

Stop- SS430F

Spring- SS304

Shading Rings- Copper

3. Detailed Information

NLK31 normally closed SS Solenoid Valve DN10 to DN50 7 to 230 PSI Pilot Piston Type 1.6 MPA 16 Bar 230 PSI Teflon Seal

Model	Port	Orifice	CV	Min. Pressure	Max. Pressure		Body Material	Seal Material	Coil
Model	Port	Orifice	CV	Min. Pressure	AC(22VA)	DC(17W)	Body Material	Seal Material	Coil
NLK3112XXX	3/8"	12	4.5	0.05Mpa	1.6Mpa	1.6Mpa	Brass SS304 SS316	PTFE Viton (FKM)	S21H
NLK3115XXX	1/2"	15	4.5	0.05Mpa	1.6Mpa	1.6Mpa			S21H
NLK3120XXX	3/4"	20	9.3	0.05Mpa	1.6Mpa	1.6Mpa			S21H
NLK3125XXX	1"	25	12	0.05Mpa	1.6Mpa	1.6Mpa			S21H
NLK3132XXX	1-1/4"	32	24	0.05Mpa	1.6Mpa	1.6Mpa			S21H
NLK3140XXX	1-1/2"	40	29	0.05Mpa	1.6Mpa	1.6Mpa			S21H
NLK3150XXX	2"	50	48	0.05Mpa	1.6Mpa	1.6Mpa			S21H
NLK3125XXX	F1"	25	12	0.05Mpa	1.6Mpa	1.6Mpa			S21H
NLK3132XXX	F1-1/4"	32	24	0.05Mpa	1.6Mpa	1.6Mpa			S21H
NLK3140XXX	F1-1/2"	40	29	0.05Mpa	1.6Mpa	1.6Mpa			S21H
NLK3150XXX	F2"	50	48	0.05Mpa	1.6Mpa	1.6Mpa			S21H

NLK32 normally open SS Solenoid Valve DN10 to DN50 7 to 230 PSI Pilot Piston Type 1.6 MPA 16 Bar 230 PSI Teflon Seal

Model	Port	Orifice	CV	Min. Pressure	Max. Pressure		Body Material	Seal Material	Coil
Model	Port	Orifice	CV	Min. Pressure	AC(22VA)	DC(17W)	Body Material	Seal Material	Coil
NLK3212XXX	3/8"	12	4.5	0.05Mpa	1.6Mpa	1.6Mpa	Brass SS304 SS316	PTFE Viton (FKM)	S21H
NLK3215XXX	1/2"	15	4.5	0.05Mpa	1.6Mpa	1.6Mpa			S21H
NLK3220XXX	3/4"	20	9.3	0.05Mpa	1.6Mpa	1.6Mpa			S21H
NLK3225XXX	1"	25	12	0.05Mpa	1.6Mpa	1.6Mpa			S21H
NLK3232XXX	1-1/4"	32	24	0.05Mpa	1.6Mpa	1.6Mpa			S21H
NLK3240XXX	1-1/2"	40	29	0.05Mpa	1.6Mpa	1.6Mpa			S21H
NLK3250XXX	2"	50	48	0.05Mpa	1.6Mpa	1.6Mpa			S21H
NLK3225XXX	F1"	25	12	0.05Mpa	1.6Mpa	1.6Mpa			S21H
NLK3232XXX	F1-1/4"	32	24	0.05Mpa	1.6Mpa	1.6Mpa			S21H
NLK3240XXX	F1-1/2"	40	29	0.05Mpa	1.6Mpa	1.6Mpa			S21H
NLK3250XXX	F2"	50	48	0.05Mpa	1.6Mpa	1.6Mpa			S21H

NLK31-F normally closed 5 Inch SS Solenoid Valve 7 to 230 PSI Pilot Piston Type 1.6 MPA 16 Bar Teflon Seal

Model	Port	Orifice	CV	Min. Pressure	Max. Pressure		Body Material	Seal Material	Coil
Model	Port	Orifice	CV	Min. Pressure	AC(22VA)	DC(17W)	Body Material	Seal Material	Coil
NLK3165FXXX	F2-1/2"	65	85	0.05Mpa	1.6Mpa	1.6Mpa	Brass SS304 SS316	PTFE Viton (FKM)	YG1B
NLK3180FXXX	F3"	80	125	0.05Mpa	1.6Mpa	1.6Mpa			YG1B
NLK3100FXXX	F4"	100	160	0.05Mpa	1.6Mpa	1.6Mpa			YG1B
NLK31125FXXX	F5"	125	200	0.05Mpa	1.6Mpa	1.6Mpa			YG1B
NLK31150FXXX	F6"	150	320	0.05Mpa	1.6Mpa	1.6Mpa			YG1B

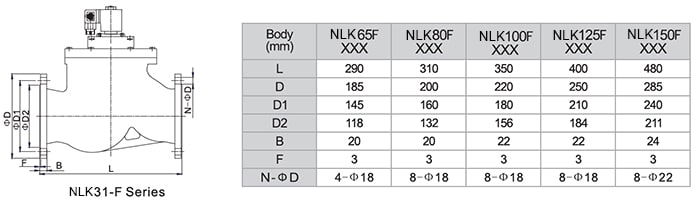

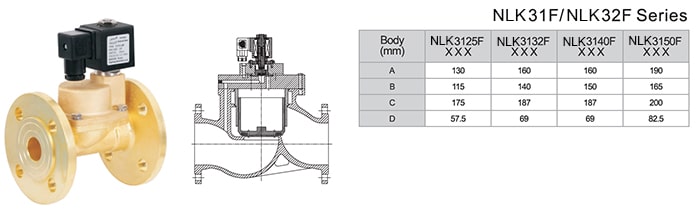

4. Diemsion

SS 1.6 MPA 16 Bar 230 PSI Piston Solenoid Valve With Teflon Seal Normally Opened

5. Packing Detail

Plastic Sealed packing to prevent metal being oxidized.

SS 1.6 MPA 16 Bar 230 PSI Piston Solenoid Valve With Teflon Seal Normally Opened

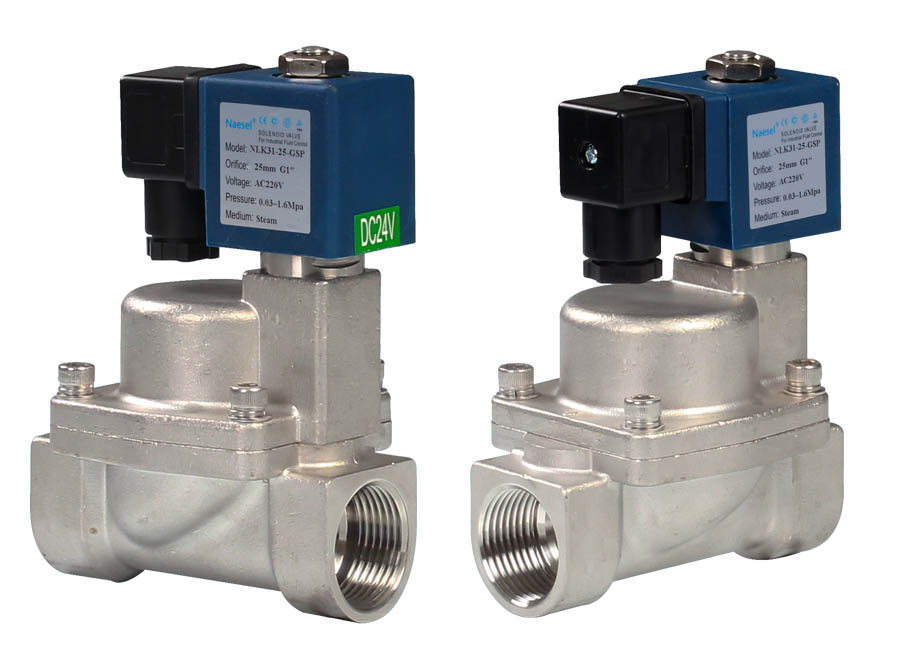

6. More Product Photo and Certifications

SS 1.6 MPA 16 Bar 230 PSI Piston Solenoid Valve With Teflon Seal Normally Opened
