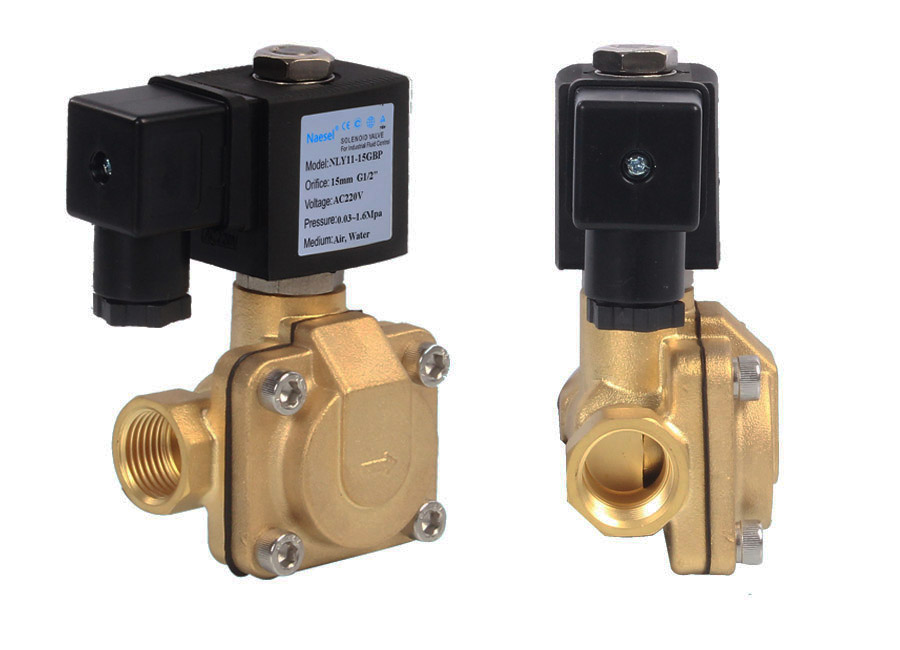

Anti Hammer Control Valve 16 Bar 232 PSI Normal Closed 0.5 to 1 Inch NO NC Viton
1. How To Order
Model Orifice Thread Body Seal Coil Voltage
NLY31 12, 15, 20, G- G B-Brass N-NBR SA11B 1-AC220V 2-DC24V
NLY41 25 N- NPT S-SS304/316 E-EPDM S91B 3-AC110V 4-DC12V
NLY32 V-FRM/Viton 0543 5-AC24V
NLY42
NLY31 Anti Hammer Control Valve 16 Bar 232 PSI Normal Closed 0.5 to 1 Inch NO NC Viton, 0.3~16bar
NLY32 Pilot diaphragm solenoid valve normal opened, 0.3~16bar
NLY41 Pilot diaphragm solenoid valve normal closed, 0.3~10bar
NLY42 Pilot diaphragm solenoid valve normal opened, 0.3~10bar
Example : NLY31 25GBV S91B1: normal closed, 25mm orifice, G1", brass body, Viton seals, AC220V.
2.Solenoid Valve Specification
Medium: Air, water, steam, oil, etc. Temperature: NBR seal:-10℃~80℃(14℉~176℉)
Orifice: 12, 15, 20, 25(mm) EPDM seal:-30℃~120℃(-22℉~248℉)
Viton seal:-30℃~150℃(-22℉~302℉)
Pressure: NLY31:0.01MPA~1.6MPA (1.45PSI~232PSI) Port thread: NPT, G Thread
Port size: 1/4”, 3/8”, 1/2”, 1"
Voltage: DC:6V,12V, 24V, 36V, Coils: SA11B,9VA(AC),6W(DC),IP65,100%ED
AC:24V, 110V, 120V, 220V, 240V S91B,22VA(AC),17W(DC),IP65,100%ED
Tolerance: ±10%
Material: Body- Brass, stainless steel, Aluminum, Character: 1. Pilot diaphragm structure,
Seal- VITION, NBR, EPDM, PTFE 2. Low consumption
Armature- SS304 3. longterm continuous working
Plunger- SS430F 4. 1 million operation lifespan
Stop- SS430F
Spring- SS304
Shading Rings- Copper
Special Coils: Latching coil DC6~24V
3.Detailed Information
NLY31 Anti Hammer Control Valve 16 Bar 232 PSI Normal Closed 0.5 to 1 Inch NO NC Viton, 0.3~16bar
| Model | Port | Orifice | CV | Min. Pressure | Max. Pressure | Body Material | Seal Material | Coil |
| AC(22VA) | DC(17W) |
| NLY3112XXX | 3/8" | 12 | 4.5 | 0.03Mpa | 1.6Mpa | 1.6Mpa | Brass | NBR EPDM Viton (FKM) | S91B |
| NLY3115XXX | 1/2" | 15 | 4.5 | 0.03Mpa | 1.6Mpa | 1.6Mpa | S91B |
| NLY3120XXX | 3/4" | 20 | 9.3 | 0.03Mpa | 1.6Mpa | 1.6Mpa | S91B |
| NLY3125XXX | 1" | 25 | 12 | 0.03Mpa | 1.6Mpa | 1.6Mpa | S91B |
NLY32 Pilot diaphragm solenoid valve normal opened, 0.3~16bar
| Model | Port | Orifice | CV | Min. Pressure | Max. Pressure | Body Material | Seal Material | Coil |
| AC(22VA) | DC(17W) |
| NLY3112XXX | 3/8" | 12 | 4.5 | 0.03Mpa | 1.6Mpa | 1.6Mpa | Brass | NBR EPDM Viton (FKM) | S91B |
| NLY3115XXX | 1/2" | 15 | 4.5 | 0.03Mpa | 1.6Mpa | 1.6Mpa | S91B |
| NLY3120XXX | 3/4" | 20 | 9.3 | 0.03Mpa | 1.6Mpa | 1.6Mpa | S91B |
| NLY3125XXX | 1" | 25 | 12 | 0.03Mpa | 1.6Mpa | 1.6Mpa | S91B |
NLY41 Pilot diaphragm solenoid valve normal closed, 0.3~10bar
| Model | Port | Orifice | CV | Min. Pressure | Max. Pressure | Body Material | Seal Material | Coil |
| AC(9VA) | DC(6W) |
| NLY4112XXX | 3/8" | 12 | 4.5 | 0.03Mpa | 1.0Mpa | 1.0Mpa | Brass | NBR EPDM Viton (FKM) | SA11B |
| NLY4115XXX | 1/2" | 15 | 4.5 | 0.03Mpa | 1.0Mpa | 1.0Mpa | SA11B |
| NLY4120XXX | 3/4" | 20 | 9.3 | 0.03Mpa | 1.0Mpa | 1.0Mpa | SA11B |
| NLY4125XXX | 1" | 25 | 12 | 0.03Mpa | 1.0Mpa | 1.0Mpa | SA11B |
NLY42 Pilot diaphragm solenoid valve normal opened, 0.3~10bar
| Model | Port | Orifice | CV | Min. Pressure | Max. Pressure | Body Material | Seal Material | Coil |
| AC(9VA) | DC(6W) |
| NLY4212XXX | 3/8" | 12 | 4.5 | 0.03Mpa | 1.0Mpa | 1.0Mpa | Brass | NBR EPDM Viton (FKM) | SA11B |
| NLY4215XXX | 1/2" | 15 | 4.5 | 0.03Mpa | 1.0Mpa | 1.0Mpa | SA11B |
| NLY4220XXX | 3/4" | 20 | 9.3 | 0.03Mpa | 1.0Mpa | 1.0Mpa | SA11B |
| NLY4225XXX | 1" | 25 | 12 | 0.03Mpa | 1.0Mpa | 1.0Mpa | SA11B |

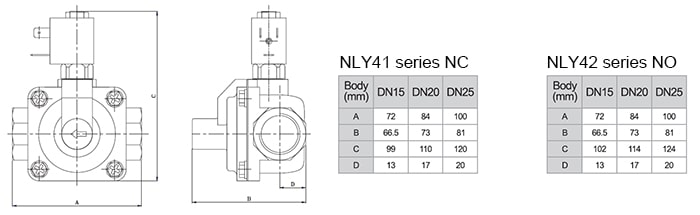

4.Diemsion
5. Packing Detail
Plastic Sealed packing to prevent metal being oxidized.
