Miniature 2 / 3 way solenoid control valve direct acting 1 / 4 G thread
Miniature 2 / 3 way solenoid control valve direct acting 1 / 4 G thread
1. How To Order
Model Orifice Port Thread Body Seal Coil Voltage
NLT21 16-1.6 1-1/8" G- G B-Brass N-NBR SA11B 1-AC220V 2-DC24V
NLT22 20-2.0 2-1/4" N- NPT S-SS304,SS316 E-EPDM 3-AC110V 4-DC12V
25-2.5 V-FRM/Viton 5-AC24V 6-DC36V
30-3.0
NLT21 normally closed 2/3 way compact solenoid valve low power consumption coil,
NLT22 normally opened 2/3 way compact solenoid valve low power consumption coil,
Example : NLHN32 30 1 GBN S91B1: NLHN32 Series, normal open, 3.0mm orifice, G1/8", brass body, NBR seals, boil S91B, AC220V.
2. Solenoid Valve Specification
Medium: Air, water, steam, oil, etc. Temperature: NBR seal:-10℃~80℃(14℉~176℉)
Orifice: 1.0, 1.6, 2.0, 2.5, 3.0,3.5,4.0, EPDM seal:-30℃~120℃(-22℉~248℉)
5.0, 6.0, 8.0, 10.0(mm) Viton seal:-30℃~150℃(-22℉~302℉)
Pressure: NLT21:0.0MPA~1.6MPA (0.0PSI~232PSI) Port size: 1/8”, 1/4”(N-NPT,G-BSPP)
NLT22:0.0MPA~1.6MPA (0.0PSI~232PSI) Port thread: NPT, G Thread
Voltage: DC:6VDC,12VDC, 24VDC, 36VDC, Coils: S11B, 9VA(AC),6W(DC),IP65,100%ED
AC:24VAC, 110VAC, 120VAC, 220VAC, 240VAC
Tolerance: ±10% Character: 1. Compact design to save the space.
Material: Body- Brass, stainless steel, Aluminum, 2. Direct acting, 0 bar generated.
Seal- VITION, NBR, EPDM, PTFE
Armature- SS304
Plunger- SS430F
Stop- SS430F
Spring- SS304
Shading Rings- Copper
Special Coils: Latching coil DC6~24V
3. Detailed Information
NLT21 normally closed 2/3 way compact solenoid valve low power consumption coil,
| Model | Port | Orifice | CV | Min. Pressure | Max. Pressure | Body Material | Seal Material | Coil |
| AC(9VA) | DC(6W) |
| NLT21161XXX | 1/8" | 1.6 | 0.11 | 0.0Mpa | 0.8Mpa | 0.8Mpa | Brass SS304 SS316 | NBR EPDM Viton (FKM) | SA11B |
| NLT21251XXX | 1/8" | 2.5 | 0.18 | 0.0Mpa | 0.6Mpa | 0.6Mpa | SA11B |
| NLT21301XXX | 1/8" | 3.0 | 0.3 | 0.0Mpa | 0.4Mpa | 0.4Mpa | SA11B |
| NLT21162XXX | 1/4" | 1.6 | 0.11 | 0.0Mpa | 0.8Mpa | 0.8Mpa | SA11B |
| NLT21252XXX | 1/4" | 2.5 | 0.18 | 0.0Mpa | 0.6Mpa | 0.6Mpa | SA11B |
| NLT21302XXX | 1/4" | 3.0 | 0.3 | 0.0Mpa | 0.4Mpa | 0.4Mpa | SA11B |
NLT22 normally opened 2/3 way compact solenoid valve low power consumption coil,
| Model | Port | Orifice | CV | Min. Pressure | Max. Pressure | Body Material | Seal Material | Coil |
| AC(9VA) | DC(6W) |
| NLT22161XXX | 1/8" | 1.6 | 0.11 | 0.0Mpa | 1.5Mpa | 1.5Mpa | Brass SS304 SS316 | NBR EPDM Viton (FKM) | SA11B |
| NLT22251XXX | 1/8" | 2.5 | 0.18 | 0.0Mpa | 1.5Mpa | 1.5Mpa | SA11B |
| NLT22301XXX | 1/8" | 3.0 | 0.3 | 0.0Mpa | 1.5Mpa | 1.5Mpa | SA11B |
| NLT22162XXX | 1/4" | 1.6 | 0.18 | 0.0Mpa | 1.5Mpa | 1.5Mpa | SA11B |
| NLT22252XXX | 1/4" | 2.5 | 0.3 | 0.0Mpa | 1.5Mpa | 1.5Mpa | SA11B |
| NLT22302XXX | 1/4" | 3.0 | 0.3 | 0.0Mpa | 1.5Mpa | 1.5Mpa | SA11B |

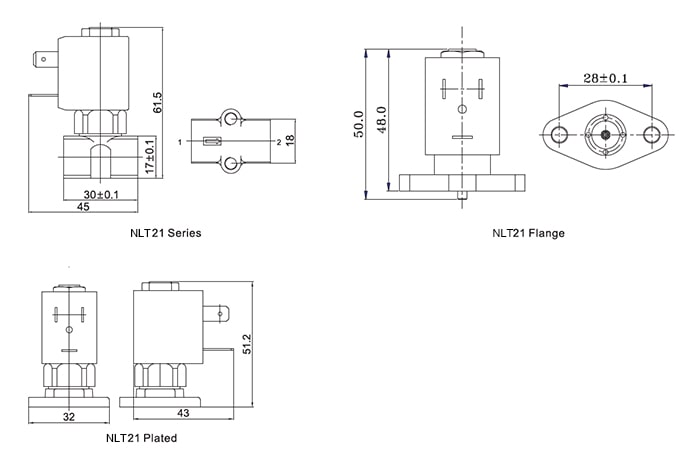

4. Diemsion
5. Packing Detail
Plastic Sealed packing to prevent metal being oxidized.
