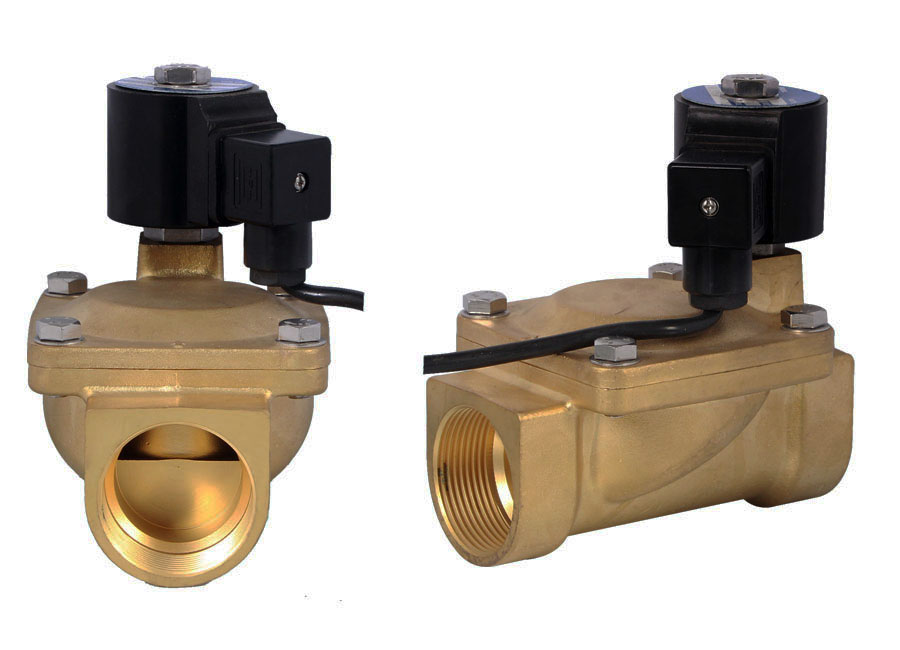

16 bar water fountain solenoid valve air explosion for water fountain 1 / 2 inch to 6 inch
16 bar water fountain solenoid valve air explosion for water fountain 1/2" - 6" inch
1. How To Order
Model Orifice Port Thread Body Seal Coil Voltage
NLWU3 15, 20, 25, 1/2" to F6" G- G S-SS304 V-FRM/Viton F14B 1-AC220V 2-DC24V
32, 40, 50 N- NPT Z- Cast Steel N-NBR F24B 3-AC110V 4.DC12V
65, 80, 100 F-Flange E-EPDM 5-AC24V
125, 150
NLWU3, Underwater solenoid valve cast iron body for water fountain 2 inch 25 bar
Example : NLWU3 65 FZN Y21H1: NLWU3 Series, NC, 65mm orifice, Flange 2-1/2" inch, Cast steel, NBR, AC220V.
2. Solenoid Valve Specification
Medium: Water Temperature: NBR seal:-10℃~80℃(14℉~176℉)
Orifice: 15 , 20, 25, 32, 40, 50, 65, 80 EPDM seal:-30℃~120℃(-22℉~248℉)
100, 125, 150(mm) Viton seal:-30℃~150℃(-22℉~302℉)
Pressure: NLWU3:0.03MPA~1.6MPA (4.5PSI~230PSI) Port thread: NPT, G Thread, Flange
NLWU3-F:0.1MPA~1.6MPA (14.5PSI~230PSI) Port size: 1/2”, 3/4”, 1", 1-1/4", 1-1/2”, 2", F2-1/2"
F3", F4", F5", F6"
Voltage: DC:12VDC, 24VDC Coils: F14B 26VA(AC)6IP65,100%ED
AC:24VAC, 110VAC, 120VAC, 220VAC, 240VAC F24B 13W(DC),IP65,100%ED
Tolerance: ±10% Character: 1. Special for water fountain
Material: Body- Brass 2. 1/2" to 4 inch available
Seal- VITION, EPDM 3. Underwater application.
Armature- SS304
Plunger- SS430F
Stop- SS430F
Spring- SS304
Shading Rings- Copper
3. Dimension
4. Specification Detail
NLWU3, Underwater solenoid valve cast iron body for water fountain 1/2"- 2 inch 25 bar thread connection
| Model | Port | Orifice | CV | Min. Pressure | Max. Pressure | Body Material | Seal Material | Coil |
| AC(26VA) | DC(13W) |
| NLWU315XXX | 1/2" | 15 | 4.5 | 0.03Mpa | 1.6Mpa | 1.6Mpa | Cast Steel Stainless Steel | Viton (FKM) EPDM NBR | F14B F24B |
| NLWU320XXX | 3/4" | 20 | 9.3 | 0.03Mpa | 1.6Mpa | 1.6Mpa | F14B F24B |
| NLWU325XXX | 1" | 25 | 12 | 0.03Mpa | 1.6Mpa | 1.6Mpa | F14B F24B |
| NLWU332XXX | 1-1/4" | 32 | 24 | 0.03Mpa | 1.6Mpa | 1.6Mpa | F14B F24B |
| NLWU340XXX | 1-1/2" | 40 | 30 | 0.03Mpa | 1.6Mpa | 1.6Mpa | F14B F24B |
| NLWU350XXX | 2" | 50 | 48 | 0.03Mpa | 1.6Mpa | 1.6Mpa | F14B F24B |
NLWU3-F, Underwater solenoid valve cast iron body for water fountain 2.5-6 inch 25 bar Flangeconnection
| Model | Port | Orifice | CV | Min. Pressure | Max. Pressure | Body Material | Seal Material | Coil |
| AC(26VA) | DC(13W) |
| NLWU365FXXX | F2-1/2" | 65 | 85 | 0.1Mpa | 1.6Mpa | 1.6Mpa | Cast Steel Stainless Steel | Viton (FKM) EPDM NBR | F14B F24B |
| NLWU380FXXX | F3" | 80 | 125 | 0.1Mpa | 1.6Mpa | 1.6Mpa | F14B F24B |
| NLWU3100FXXX | F4" | 100 | 160 | 0.1Mpa | 1.6Mpa | 1.6Mpa | F14B F24B |
| NLWU3125FXXX | F5" | 125 | 200 | 0.1Mpa | 1.6Mpa | 1.6Mpa | F14B F24B |
| NLWU3150FXXX | F6" | 150 | 320 | 0.1Mpa | 1.6Mpa | 1.6Mpa | F14B F24B |
5. Packing Detail
Plastic Sealed packing to prevent metal being oxidized.
6. More Product Photo and Certifications
7. Why US?
Our core advantages to pursue Your Success.
1.Reliable Quality (We are OEM supplier of ASCO and Parker)
2.Over 20 years solenoid valve design and customize experience.
3.Mark Service(both Product and packing wiht your design and logo)
4.Related Supply Service, including Festo, SMC, , Airtac, Shako.
5.Good English communication
6.Opening Mind to growing with clients for different products.
(please continue reading to find out more detail)
