Underwater 25 Bar Solenoid Control Valve Air Explosion 2 Inch Size Air Fluid

Name: Underwater 25 Bar Solenoid Control Valve Air Explosion 2 Inch Size Air Fluid
Brand: NAESEL
Price: 1 USD

Buy cheap Underwater 25 Bar Solenoid Control Valve Air Explosion 2 Inch Size Air Fluid product

Brand Name : NAESEL

Model Number : NLWU2

Certification : CE

Place of Origin : China

MOQ : 10PCS

Price : Negotiation

Payment Terms : L/C, Western Union, T/T, MoneyGram

Supply Ability : 10000PCS Per Month

Delivery Time : 2-7 days

Packaging Details : Solid Paper Carton, within pallet over 10 cartons

Material : UPVC or CPVC

Port : 3/8",1/2", 3/4", 1", 1-1/4", 1-1/2", 2", 2-1/2", 3", 4", 5", 6"(NPT G) or flange

Fluid : Air

Orifice : 15, 20, 25, 32, 40, 50, 65, 80, 100, 125, 150(mm)

Seals : NBR EPDM FKM(Viton)

Temperature : -30~150℃

Coil Consumption : 26VA(AC), 13W(DC)

Guarantee : 15 Month

Feature 1 : Diaphragm structure

Feature 2 : Suitable for water fountain

Contact Now

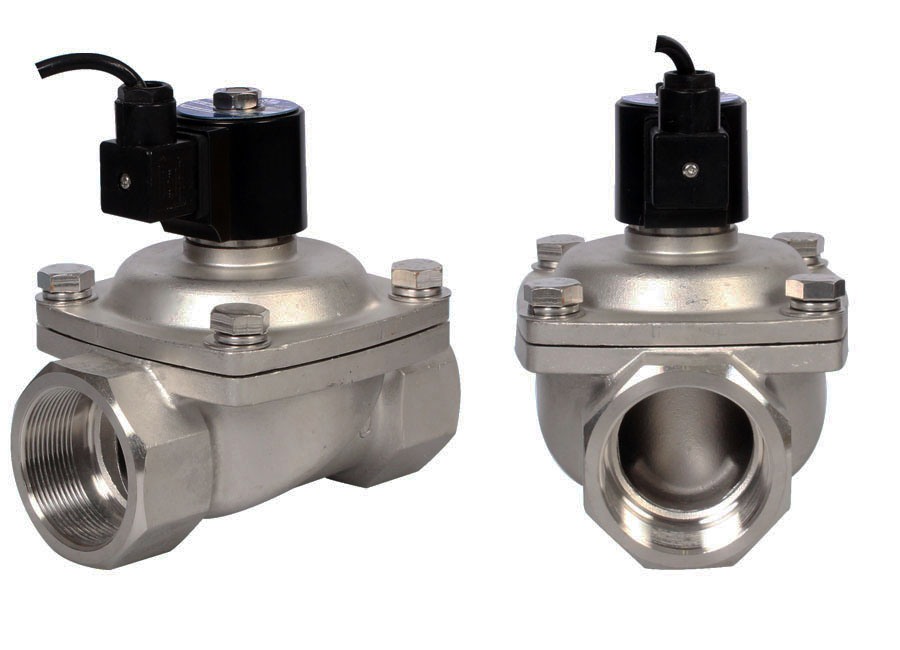

Underwater solenoid valve cast iron body for water fountain 2 inch

Underwater solenoid valve cast iron body for water fountain 2 inch

Underwater 25 Bar Solenoid Control Valve Air Explosion 2 Inch Size Air Fluid

1. How To Order

Model Orifice Port Thread Body Seal Coil Voltage

NLWU2 15, 20, 25, 1/2" to F6" G- G S-SS304 V-FRM/Viton F14B 1-AC220V 2-DC24V

NLWU2-F 32, 40, 50 N- NPT Z- Cast Steel N-NBR F24B 3-AC110V 4.DC12V

65, 80, 100 F-Flange E-EPDM 5-AC24V

125, 150

NLWU2, Underwater solenoid valve cast iron body for water fountain 2 inch 25 bar

Example : NLWU250 NZE Y21H1: NLWU2 Series, NC, 50mm orifice, G2" inch, Cast steel body, EPDM seals, AC220V.

2. Solenoid Valve Specification

Medium: Water Temperature: NBR seal:-10℃~80℃(14℉~176℉)

Orifice: 15 , 20, 25, 32, 40, 50, 65, 80 EPDM seal:-30℃~120℃(-22℉~248℉)

100, 125, 150(mm) Viton seal:-30℃~150℃(-22℉~302℉)

Pressure: NLWU2:0.1MPA~2.5MPA (14.5PSI~360PSI) Port thread: NPT, G Thread, Flange

Port size: 1/2”, 3/4”, 1", 1-1/4", 1-1/2”, 2", F2-1/2"

F3", F4", F5", F6"

Voltage: DC:12VDC, 24VDC Coils: F14B 26VA(AC)6IP65,100%ED

AC:24VAC, 110VAC, 120VAC, 220VAC, 240VAC F24B 13W(DC),IP65,100%ED

Tolerance: ±10% Character: 1. Special for water fountain

Material: Body- Brass 2. 1/2" to 4 inch available

Seal- VITION, EPDM 3. Underwater application.

Armature- SS304

Plunger- SS430F

Stop- SS430F

Spring- SS304

Shading Rings- Copper

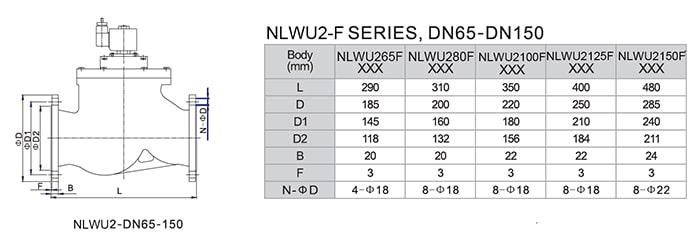

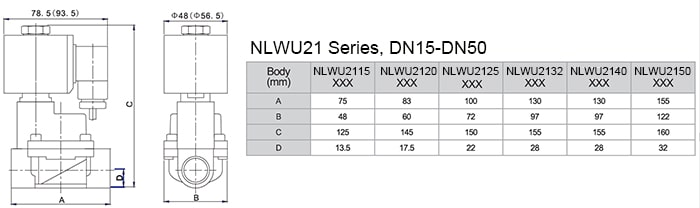

3. Dimension

Underwater 25 Bar Solenoid Control Valve Air Explosion 2 Inch Size Air Fluid

4. Specification Detail

NLWU2, Underwater solenoid valve cast iron body for water fountain 2 inch 25 bar thread connection

Model	Port	Orifice	CV	Min. Pressure	Max. Pressure		Body Material	Seal Material	Coil
Model	Port	Orifice	CV	Min. Pressure	AC(26VA)	DC(13W)	Body Material	Seal Material	Coil
NLWU215XXX	1/2"	15	4.5	0.1Mpa	2.5Mpa	2.5Mpa	Cast Steel Stainless Steel	Viton (FKM) EPDM NBR	F14B F24B
NLWU220XXX	3/4"	20	9.3	0.1Mpa	2.5Mpa	2.5Mpa			F14B F24B
NLWU225XXX	1"	25	12	0.1Mpa	2.5Mpa	2.5Mpa			F14B F24B
NLWU232XXX	1-1/4"	32	24	0.1Mpa	2.5Mpa	2.5Mpa			F14B F24B
NLWU240XXX	1-1/2"	40	30	0.1Mpa	2.5Mpa	2.5Mpa			F14B F24B
NLWU250XXX	2"	50	48	0.1Mpa	2.5Mpa	2.5Mpa			F14B F24B

NLWU2-F, Underwater solenoid valve cast iron body for water fountain 2 inch 25 bar thread connection

Model	Port	Orifice	CV	Min. Pressure	Max. Pressure		Body Material	Seal Material	Coil
Model	Port	Orifice	CV	Min. Pressure	AC(26VA)	DC(13W)	Body Material	Seal Material	Coil
NLWU265FXXX	F2-1/2"	65	85	0.1Mpa	2.5Mpa	2.5Mpa	Cast Steel Stainless Steel	Viton (FKM) EPDM NBR	F14B F24B
NLWU280FXXX	F3"	80	125	0.1Mpa	2.5Mpa	2.5Mpa			F14B F24B
NLWU2100FXXX	F4"	100	160	0.1Mpa	2.5Mpa	2.5Mpa			F14B F24B
NLWU2125FXXX	F5"	125	200	0.1Mpa	2.5Mpa	2.5Mpa			F14B F24B
NLWU2150FXXX	F6"	150	320	0.1Mpa	2.5Mpa	2.5Mpa			F14B F24B

5. Packing Detail

Plastic Sealed packing to prevent metal being oxidized.

Underwater 25 Bar Solenoid Control Valve Air Explosion 2 Inch Size Air Fluid

6. More Product Photo and Certifications

Underwater 25 Bar Solenoid Control Valve Air Explosion 2 Inch Size Air Fluid

7. Why US?

Our core advantages to pursue Your Success.

1.Reliable Quality (We are OEM supplier of ASCO and Parker)

2.Over 20 years solenoid valve design and customize experience.

3.Mark Service(both Product and packing wiht your design and logo)

4.Related Supply Service, including Festo, SMC, , Airtac, Shako.

5.Good English communication

6.Opening Mind to growing with clients for different products.

(please continue reading to find out more detail)

Underwater 25 Bar Solenoid Control Valve Air Explosion 2 Inch Size Air Fluid
